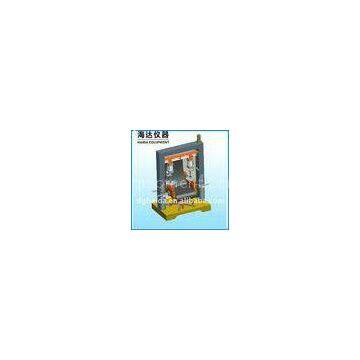

16 Inch Impact Furniture Testing Machines , Chair Fatigue Testing Equipment
Specifications
Chair Seating Durability Tester is used to assess seat covers in the vertical load capacity of endurance, suit all kinds of chair
Product description
Chair Seating Durability Tester to evaluate the ability of a chair to withstand heavy impact forces on the seat.
This tester is designed for dynamic and cyclic durability seat test
Test Properties: comprehensive performance test, Assessment of seat covers in the vertical load capacity of endurance.
Specimen: the whole chair, all kinds of chair.
Test program: Composed with impact test and Static front test
Impact test: Impact the chair with 125 pounds standard sand bags at 10-30cpm speed 100000 times.
Hydrostatic test: press the chair around the corner before and after slowly with 10-30cpm speed 20000 times.
Results evaluation: The whole chair will not lose the function after testing.
The Chair Seating Durability Tester Main Technical Parameters
|
Counter |
0-999,999, memory, output control |
|
Impact sandbags diameter |
16 inch 125 pounds standard sandbbags |
|
Static pressure mould diameter |
8 inch, 165 pounds briquetting |
|
Impact speed |
10-30 times/minute or specified |
|
Static pressure speed |
10-30 times/minute or specified |
|
Cylinder stroke |
0-300mm |
|
Rail height |
90-135cm |
|
Machine size |
270*85*80cm |
|
Power |
1#, AC220V, 3A |
|
BIFMA requirements |
impact 100000 times+ static pressure 20000 times(left) |
