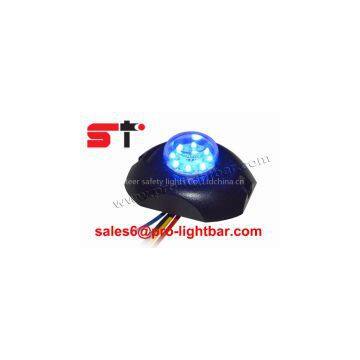

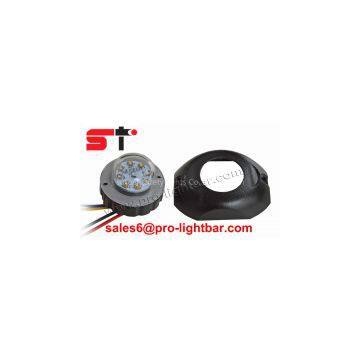

Help CenterCar Hide a Way Light Led Eagle Light L168
Related Products
-
Car Hide Away Light Led Convert Light L306-12US$ 22 - 22MOQ: 1 Piece -
Hideaway Light,hideaway,strobe Light,warning Light,emergency LightNegotiableMOQ: 1 Piece
-
Exterior Amber Dual Tir4 R65 Auxiliary LightingUS$ 40 - 40MOQ: 1 Piece
-
Grille Light 6 LED Strobe Light HeadUS$ 40 - 40MOQ: 1 Piece
-
60\" Truck Tail Light Tailgate LED Rigid Strip Light BarUS$ 40 - 40MOQ: 1 Piece
This series is a concealed LED warning light that features high intensity 1-watt LEDs to deliver an exceptionally bright warning signal.Simple installation with no separate lamp drivers, flashers, ballast or power supplies to install in any suface mount or inside of headlight.Requiring only a single 1” hole.The lights features 12-24 VDC operation, 20 flash patterns, the ability to synchronize with additional units.
Features and Technical Specifications:
Generation III high power LED, Hide-away light
High strength: Aluminum housing and cover
LED power: 8PCS of 1Watt LEDs
Pre-programmed multiple 20 flash patterns
Alternating or simultaneous flashing available
Waterproof: IP67
Wiring:
RED: + 12V DC (Fuse@ 3A)
BLACK: – GROUND Connect to Ground vehicle chassis
Yellow Pattern:
Selection To select Flash pattern, apply Yellow to Black, Less than 1 second for next pattern About 3-5 seconds for steady burn, more than 5 seconds to turn off
Blue: Synchronization
Connect Blue wire of all heads together for synchronization All heads must be on same flash pattern to be able to synchronization
Flash Patterns:
1. Steady on
2. Random
3. Single slow (T=280ms)
4. Single fast (T=150ms)
5. Double slow (T=85ms)
6. Double fast (T=60ms)
7. Triple (T=300ms)
8. Quad (T=400ms)
9. Extreme action flash (T=350ms)
10. Extreme warp flash (T=250ms)
11. Single slow (T=50ms)
12. Single fast (T=25ms)
13. Double slow
14. Double fast
15. Triple (T=50ms)
16. Quad (T=50ms)
17. Extreme action flash (T=250ms)
18. Extreme warp flash (T=100ms)
19. Half Steady 1
20. Half Steady 2
