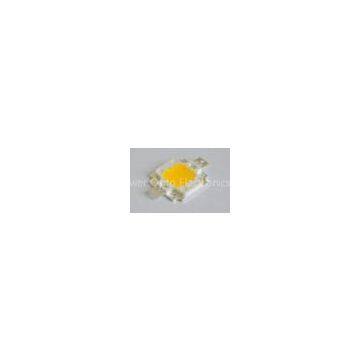

8W 900Lm Outdoor Lighting Bridgelux LED Module With EN62471
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
- Discrete Traics (Isolated) BTA41-200 BTA41-400 BTA41-600 BTA41-800 BTA41-1000 BTA41-1200
- Three-terminal positive voltage regulator 78L12 transistors
- Bipolar Transistors TO-92 BC546 BC547 BC548 (NPN)
- Bipolar Transistors 40V D882 SOT89
- Bipolar Transistors 60V 200mA 2N3904
- Bipolar Transistors 40V 200mA 2N3906
Product Details
Brand Name: | Lepower | Place of Origin: | China | Model Number: | LY-WH020801B4545 |
Product Description
Certification:CE, RoHS, EN62471
900lm 8W high power led module with Bridgelux 45mil chip for outdoor lighting
Quick Detail:
8W power consumption Integrated package, high light efficiency Bridgelux 45mil led chip 24-27V,320mA, up to 110lm/W,Ra>70 Size: 20mm*20mm Warm white/Neutral white/Cool white optional Excellent thermal conductivity, well heat dissipation to reduce the light decay and extend the lifetime of the light source. Suitable for wide range applications, he variety of working environment. High light efficiency but low power consumption. With compact structure and convenient for welding operation. 2 years warranty8W 900Lm Outdoor Lighting Bridgelux LED Module With EN62471
Description:
With compact structure and convenient for welding operation. Integrated package, 8-15W different power customized Super high lumens light source Several led chips available, easy selection with your goal. Thermal conductivity design, well heat dissipation to reduce the light decay and extend the lifetime of the light source.Applications:
Flood light High bay light Track light Down lightSpecification:
Dimension
Electrical/Optical Characteristics (At TA=25°C)
Parameter |
Symbol |
Conditions |
Min. |
Avg. |
Max. |
Units |
Luminous Flux |
Φ |
IF=320mA |
800 |
-- |
900 |
lm |
Color Rendering Index |
CRI |
IF=320mA |
− − |
70 |
− − |
Ra |
Color Temperature/ Color coordinates |
CCT |
IF=320mA |
2800 |
-- |
3000 |
K |
Forward Voltage |
VF |
IF=320mA |
24 |
-- |
27 |
V |
Luminous efficiency |
Φ |
IF=320mA |
90 |
-- |
100 |
Lm/W |
Thermal Resistance Junction To Board |
RΘJ-B |
IF=320mA |
− − |
2 |
− − |
°C/W |
Reverse Current |
IR |
VR=17V |
− − |
− − |
2 |
μA |
Viewing Angle [1] |
2Θ1/2 |
IF=320mA |
− − |
130 |
− − |
Deg |
Absolute Maximum Rating(At TA=25°C)
Parameter |
Symbol |
Ratings |
Units |
Power Dissipation |
PD |
8 |
W |
Continuous Forward Current |
IF |
