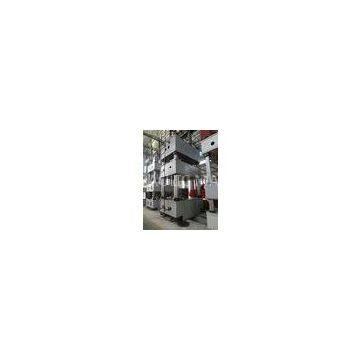

1000 Ton Four-Column Hydraulic Press For Aluminium Extrusion

Delivery Time:15-30 days
Certification:ISO 9001-2000,CE

1000 Ton Four-Column Hydraulic Press For Aluminium Extrusion

Quick Detail:


Three-beam, 4-column structure hydraulic press machine Press machine can be customized with one cylinder, two cylinders, three cylinders and four cylinders. Cold or heat hydraulic oil press machine Three operation model, manual, semi-auto and auto; equipped hands operation button and emergency stop button Apply to deep drawing, winding, stamping and pressing working process Equipped Mitsubishi PLC and CNC control system Apply to industry of steel parts, plastics moulding, powder parts compacting, and etc. . Hydraulic press model are from 100 ton, 160 ton, 200 ton,315 ton,500 ton, 630 ton, 1000 to 2000 ton. Working speed, idel speed, and return speed can be adjustable



Description:


These presses are suitable for processing plastic materials, such as stamping, bending, cramping and drawing metal sheet, ect. It can also be used for straightening, pressing, plastics moulding and sintered parts compacting. It is suitable for the press fitting and stretch forming of metal and plastic products as well as the movements of coining and overprinting. The press has its own independent dynamic mechanism and electric system and uses pushbuttons controlling system. Three operation modes of adjustment, manual and semi-auto operations can be realized. It employs four-column guiding device and ejecting device, which can automatically eject workpieces with accurate guiding and fast speed. The drawing device can be added to this equipment in order to change moulds easily. The machine, with a high degree of automatization, is particularly suitable for the mass production of parts. It can be used as assembly line with several such equipments.



Applications:


Y32 Series Four-column Guide Molding Hydraulic Press is a kind of multifunctional machine which has high speed. It mainly applies to the felds of machine tool, engineering machinery, bearings, washing machine, automobile parts, motor components and powder metallurgy. It is suitable for the molding of plastic products, such as DMC and BMC.



Specifications:


Item	Unit	1000T
Nominal force	KN	10000
Ejecting force	KN	1000
Max. pressure of liquid	MPa	26
Stroke of slider	mm	900
Max. opening height	mm	1500
Table size	F. B.	mm	1600
L. R.	mm	1600
Ejecting stroke	mm	400
Speed of slider	Idle speed	mm/s	＞100
Working speed	mm/s	12
Return speed	mm/s	80
Overall dimension	L. R.	mm	2340
F. B.	mm	3000
Above floor	mm	5800
Motor power	KW	68
