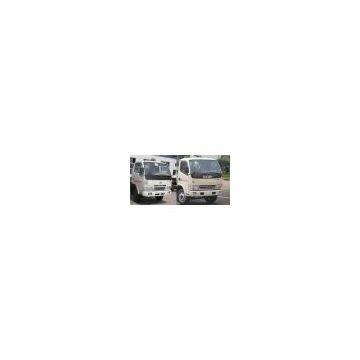

Dongfeng Duolike 4*2 7.6cbm Road Milk Tanker Truck

Dongfeng Duolike8*4 7.6cbm milk tanker truck

(CLW5110GNY4)

L×W×H mm

7000X2300X2650(mm)

Chassis Model

DFA1110SJ11D3

Cargo body Dimension(mm)

××(mm)

total mass

11495(Kg)

Approach/Departure angle

24/12(°)

Rated mass

6000(Kg)

front/rear suspension

1210/1990(mm)

curb mass

5300(Kg)

Max. speed

90(km/h)

Engine

manufacturer

displacement(ml)

power(kw)

ISB3.9-125E40A
CY4102-CE4B
CY4102-CE4C
YC4E140-42
YN38CRD1

Dongfeng Cummins Engine Co., Ltd.

Dongfeng Chaoyang Diesel Engine Co., Ltd.

Guangxi Yuchai Machinery Co.,Ltd

Kunming Yunnei Power Co., Ltd.

3900
3856
3856
4260
3760

92
100
91
103
95

Emission standard

EuroⅢ

Axle

2

front tread

1770,1831(mm)

Wheelbase(mm)

3,800

rear tread

1640,1586(mm)

tyre

16

tyre size

10.00-20,10.00R20,11.00-20,11.00R20

fuel type

diesel

spring

8/10+7,11/9+7

axle load

4595/6900

cab passenger

3

Special

performance

Tank capacity:7.6 CBM tank dimension(length*long axle*short axle)(mm) 4,950*2,010*1,340.(the real dimension is 4,790*1,850*1,180) the outside insulation layer height is 80mm). The drive cab depends on chassis. The protective material: Q235A carbon steel, the connection way: the two sides and rear bottom protections use welding. The rear protection section dimension(mm) 300*50*5, and the height to the ground is 510mm.

Note

The tanker will be used to transport pasteurized, chilled milk on rough surfaces and asphalt roads over long distance and within the city to be used for distribution duty. The double compartment & round/ elliptical shape tanker to be mounted on a chassis of sufficient capacity. The road milk tanker should be designed meeting with local regulations of road transport authorities
