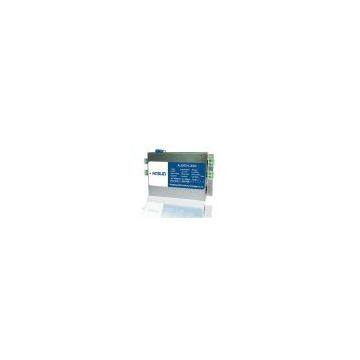

Help Center24V AC 2 in 1 Power and 1000M Network Signal Surge Protector
Related Products
-
220V AC 2 in 1 Power and 100M Network Signal Lightning ArresterNegotiableMOQ: 1 Meter -
220V 3 in 1 100M Network Camera Surge Protector for Power/network/control SignalNegotiableMOQ: 1 Meter
-
220V 3 in 1 1000M Network Camera Lightning Protecor for Power/network/control SignalNegotiableMOQ: 1 Meter
-
12V 3 in 1 100M Network Camera Surge Protecor for Power/network/control SignalNegotiableMOQ: 1 Meter
-
48V DC Signal Channel 100M/1000M POE Surge ArresterNegotiableMOQ: 1 Meter
Function and theory
AJ2CH type 2 in 1 SPD, integrated by Power SPD, network signal SPD, is used to protect surveillance system sensitive to electromagnetic interference, from damaging by lightning induced voltage, power interference and electrostatic discharge.
Feature
1) Camera power + network multi stage protective circuit
2) International famous core component brand
3) High discharge current capacity, low insertion loss, superior transmission performance, no leakage current
4) Low residual voltage, perfect protective effect
5) Quick response, stable performance, reliable working
6) Small size, easy installation
Specification
Product model |
AJ2CH-24 |
|
1. power specification | ||
Max continuous working voltage (Uc) |
24V AC |
|
Nominal discharge current (In) |
5KA |
|
Max discharge current (In) |
10KA |
|
Protection level |
≤100V |
|
2. net specification | ||
Max continuous working voltage (Uc) |
5V |
|
Nominal discharge current (In) |
5KA |
|
Max discharge current (In) |
10KA |
|
Protection level |
≤25V(core wire—case/ground) |
|
Data transmission rate |
≤1000Mbps |
|
Insertion loss |
≤0.5dB |
|
Interface type |
RJ45 |
|
3. other specification | ||
Case |
Aluminum material, oxidation surface(black, silver) |
|
Dimension |
100*55*28mm (including interface) |
|
Wire interface |
Power supply |
Compression joint port, suitable for 16-26AWG(0.15-1.3mm2) wire |
net signal |
rj45 connector |
|
Ground |
Earth wire terminal or 2.5mm2earth wire |
|
Installation |
Inside of box or cabinet |
|
Working conditions |
Temperature:－40～＋85℃; Relative humidity:≤95％(25℃); Elevation≤3km |
|
Note: For latest information, please contact ANSUN company |
Installation and wiring
1) According to protection demands, the SPD is connected by series between protected devices and signal path, the closer the distance to protected devices, the better the protection effect.
2) To connect separately a)the cable to the input terminal of power, net port, b) output terminal of SPD power, net to related interface of protected devices, c) ground line of SPD to earth wire of lightning protection system
3) After wiring, please check it until everything is going well, to put into operation.
