Large Capsule Mold / Softgel Die Roll For Making OB / OV Shape With CE
Quick Detail
|
Product Name |
Large Die roll for softgel and paintball |
Certification |
CE |
|
Place of Origin |
Beijing, China(Main land) |
Material |
Aluminium alloy |
|
Die roll Speed |
0~5 rpm |
Product Description

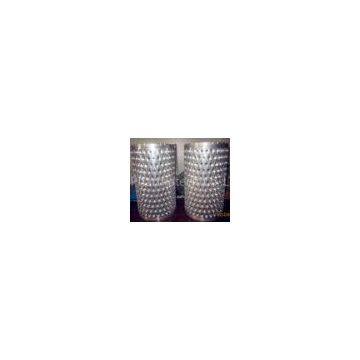

The soft capsules die roll are widely used in softgel making machines for softgel making enterprises and pharmaceutical enterprises. It can make various types of softgel and according to customers’ requirements. S406 Soft capsule die roll is used for S406 Soft capusle making machine which is suitalble for medium scale production. The raw material of die roll is imported aircraft grade aluminium alloy which has very good strength and tension. Its tension degree can get to 570 MPa and 150 Brinell hardness. Using the imported aircraft grade aluminium alloy can significantly prolong the life of dies. Besides, users can largely reduce the using cost because there are usually four times to repair during its life cycle. After processing these dies roll, technologists will make special surface treatment technology so as to further improve the mold surface hardness and corrosion resistance. In designing softgel die rolls, we strongly absorbed much experience from home and abroad to make better die rolls which can reduce the leakage and net rate and improve the stability of the soft capsule and paintball production.
Application
It’s widely used for softgel and paintball making enterprises and pharmaceutical enterprises, including cosmetic manufacturing company and health products manufacturing company and nutrition foods manufacturing.
Specification
|
Model |
Ø 150X250 |
|
Die roll diameter(mm) |
150 |
|
Die roll length(mm) |
250 |
|
Die roll speed |
0-5 |
|
Plunger Qty. |
20 |
|
Machine Overall Dimension |
2050×1200×1850mm |
|
Machine Weight(kg) |
1900kg |
|
Machine Power(kw) |
20kw |
|
Control |
PLC.touch screen |
Competitive Advantage
1. Widely used for softgel and paintball making enterprises and pharmaceutical enterprises
