Home > Products > LED Street Light Components > 30W CREE Led Street Light Replacement For Outdoor Street light Parts Retrofit
30W CREE Led Street Light Replacement For Outdoor Street light Parts Retrofit
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
12W CREE Led Street Light Module with Street Light Lens , PCB Module Replacements
-
18W Rebel Led Street Light / Lamp Module For Outdoor Lighting Fixture Retrofit DIY
-
12W CREE Led Array Lens Transparent PMMA 93% Transmittance
-
Lentes Optical Led Array Lens 30W For Tunnel Lighting
-
Asymmetric LED Lens ,Led Optical Lens for Street Light Fixture
-
Polarized Optical Lens for Rebel CREE leds
Product Details
| Brand Name | Sunshineopto | Place of Origin | China | |
| Model Number | SUN-LD5X6 |
Product Description
Certification:SGS,ROHS
Quick Detail:
Model No:SUN-LD5x6
Driver Model :AT1361-36X1
Material: PMMA optical
Beam Angle :90x126degree
Lens size:171x125x8.13mm
Led chips:Cree XPE|XPG|XPC,OSRAM
Description:
Features :
This SKD 30W Street Light lens with PCB Module is best choice to retrofit the old lamps or assemble power lamps like 60W,120W,180W and so on . It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures. Industry-leading thermal management utilizing technology Operating temperature range: from 35 Celsius degree to 70 Celsius degree. The LED retrofit kits contain no any mercury or lead. Does not produce UV rays that harm people’s eyes. Directional light means no light pollution, dark sky compliance. Optic lenses are available for projects that need smaller beam angles, like 70x126°, 140x70°,120x60°, 90x126°,60x60° etc.Applications:
It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, scenery area and so on. It will be the best to replace traditional high pressure street light .It is also the best choice to retrofit the old HPS lamps as replacement .
Specifications:
|
1, Product Name |
30W CREE Led Street Light Replacement For Outdoor Street light Parts Retrofit |
|
2, Model No |
SUN-LD5X6 |
|
3, Main parts |

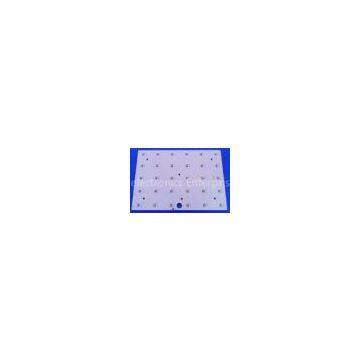

30W CREE Lens+ Silicone gasket + AL PCB mounting CREE leds +Waterproof led constant driver |
|
4, Lens Material |
PMMA Optical |
|
5, Lens size |
171x125x8.13mm |
|
6, PCB Size |
150x104mm |
|
7,CREE LEDS |
R3 122LM/WATT 5700-6300K |
|
8, Sample |
3 days |
|
9, Delivery |
5-6days |
|
10, Certificate |
ROHS, SGS,CE |
|
11, Quality guarantee |
If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
|
12, Main market |
Europe, South America,North America, Asia |
Parameters for AT1361 Led Constant Current driver :
Suitable for AC100V～240V Input voltage
Output power should be less than 36W
Input and output is isolated
Power factor is > 0.9
ROHS standard
Easy to adjust the output of constant current for led lights
Have bared PCB , Plastic box and aluminum enclosure waterproof for choice
|
Model NO. |
AT1361-36X1W |
AT1361-7X4W |
|
Rated Input voltage |
110VAC/220VAC |
|
|
Input voltage scale |
100～240VAC ,47～63Hz |
|
|
Power factor |
>0.9 |
>0.9 |
|
Efficiency |
>88% |
>84% |
|
Rated input power |
<42W |
<44W |
|
Loading input power |
<2.5W |
<2.5W |
|
Short-circuit input power |
<6W |
<6W |
|
AC Current |
& |
