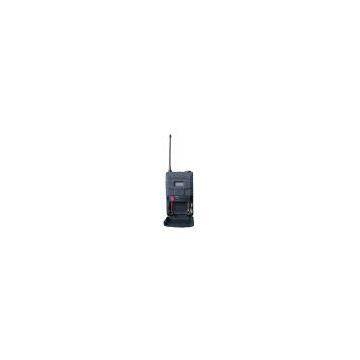

Help CenterDiversity Wireless Microphone U601TD/U602TD
Related Products
-
Pencil Type Wireless Microphone U5S1NegotiableMOQ: 1 Piece -
Ceiling Mounting SpeakerNegotiableMOQ: 1 Piece
-
MQ Power AmplifierNegotiableMOQ: 1 Piece
-
Discussion Conference System ACS930MANegotiableMOQ: 1 Piece
-
Integrated Video Intelligent-track Voting Conference System ACS2022MANegotiableMOQ: 1 Piece
The system is true diversity dual receiver,effective receive distance is up to 50-100m,distance is able
up to 300m if match antenna amplifier.It supports 12pieces microphone use in one room without
mutual interference.100pieces microphone use in one building without mutual interference.
The series wireless microphone is able to select handheld,clip type,head worm type,conference mic,
or mix and match by arbitrary,flexible combination.
Transmitter(Wireless Microphone)Specification:
| Model | WMH-10U metal outer,handheld | WMH-08U plastic outer,handheld | WMB-01U clip or head wearing microphone | WMC-33U conference gooseneck microphone |
| picture | ||||
| outer material | zin/aluminum alloy | ABS plastic | ABS plastic pedestal | |
| Battery type | AAx2 | |||
| frequency method | Infrared ACT | |||
| Digital LCD | Battery power,channel | |||
| Frequency points | 200 points adjustable | 100 points adjustable | 200 points adjustable | |
| RF output power | 30mW/3mW(HI/LO transform | |||
| Power consumption | <110-120mA(high power) <80mA(low power) | |||
| utility time(alkalescent battery) | more than 8 hours with big power(outdoor using or perform)； more than 12 hours with small power(indoor using) | 12 hours | ||
| Frequency stability | 0.005% crystal control(-10C-40C) | |||
| harmonic and extraneous wave radiation | -60dB | |||
| frequency deviation | ±15KHz normal | |||
| maximum frequency deviation | ±35KHz maximum | |||
| Control key | panel set power switch,built-in switch for high/low power transform,function locked switch | volume adjust knob and high/low power transform button | ||
| Sound head type | Moving-coil,Cardioid | capacitance,Cardioid | ||
| Efficiency transmission distance | 50-100 m(change according to environment) |
Notes: WMH-10U tail with anti-falling PC,net head with anti-rolling,anti-falling electrical board design
CH22M the two charger(accessory selection)
The charger with two charger hole,is able to charge for one/two handheld microphones or pocket transmitter by same brand at the same time.
