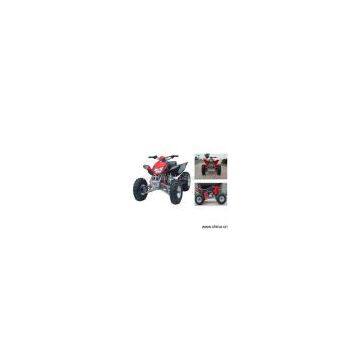

ATV

Model No.:ATV250S-4
Product Origin:China
Brand Name:Tianyu
Price Terms:FOB Shanghai / Ningbo
Payment Terms:T/T or L/C at sight
Certification:CE
Description:Specifications: 1) Main parameter as well as function index 2) Length x width x height (mm): 1,680 x 960 x 880 3) Front wheel base (mm): 870 4) Rear wheel base (mm): 930 5) Engine type: single cylinder, 4 stroke, reverse inside 6) Start mode: electric 7) Power (kW / r / min): 11kW / 6,500r/min 8) Max. torque (N.m / r/min): 17+5%N.m / 6,000±500r/min 9) Max. speed(km/h):>=90 10) Mini ground clearance (mm): 175 11) Dry weight (kg): 145 12) Transmission mode: chain 13) Break type (F / R): hydraulic brake 14) Max. climb degree: 60 15) Tank capacity (L): 1±0.1 16) Hanging: double arm-swing 17) Specification of tire: front-wheel drive: 23 x 7-10 18) Rear wheel: 22 x 10-10 19) Cylinder diameter x journey (mm): 65.5 x 66.2 20) Displacement (ml): 223 21) Shift gear: 4 gear / 1 reverse, neutral 22) Height of seats (mm): 700 23) Mini turning radium (mm): 2,000 24) Parking trig: mechanic lock 25) Ignition mode: CDI 26) Loading capacity (kg): 200 27) Engine oil (L): 1.0 28) Gear wheel oil (L): 0.2 29) Person: 1 30) Lubrication: press splash 31) Compression proportion: 9.0: 1 32) Gas cylinder number: 1 33) Parking dimensions (mm): 1,680 x 960 x 880 Conveyance: Qty/20' FCL: 12units Qty/40' FCL: 28units Qty/40' HQ: 42units
