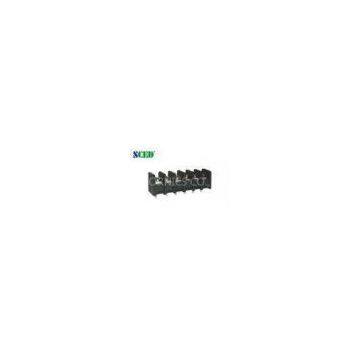

8.255mm PCB Terminal Block 2-32P, 300V 20A Barrier Type Terminal Block
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B C D |
|
Rated Voltage / Current V/A |
300 / 20 300 / 10 |
|
Wire Range AWG |
12-26 12-26 |
|
IEC Technical Data |
|
|
Overvoltage Category |
Ⅲ Ⅲ Ⅱ |
|
Contamination Class |
3 2 2 |
|
Rated Voltage / Current V/A |
320 / 32 400 / 32 630 / 32 |
|
Rated Surge Voltage KV |
4 4 4 |
|
Rated Connecting Capacity mm2 |
4 |
|
Material |
|
|
Insulation Material / Inflammability Class |
PBT / UL94, V-0 |
|
Terminal / Plating |
Brass Tin / Plated |
|
Screw / Plating |
Steel / Nickel Plated |
|
Other Data |
|
|
PCB Hole Diameter mm |
φ1.8 |
|
Stripping Length mm |
6-7 |
|
Screw / Torque / lbf.in |
M 3/ 5-7 |
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
