Specifications
ure switch pressure control
2.easy installation
3.electric and intelligentized
4.High quality,reasonable price

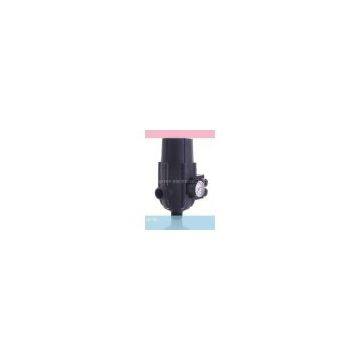

Model number: JH-3
Color: as your requirement
Brand name:JIAHONG (or make customer’s brand)
Technical parameters:
RATED VOLTAGE:220V-240V 110V-120V
FREQUENCY:50/60HZ
MAX CURRENT:10A 20A
MAX POWER:1.1KW 1.5KW
INITIAL PRESSURE: 1.2bar 1.5bar
MAX PRESSURE:10BAR
INTERFACE THREAD:R1”
PROTECTION CLASS:IP65
MAX WORKING TEMPERATURE:60°C
CABLE SPECIFICATIONS:7.5-9MM
Function:
1.Electric swith used in water systems,start and stop the pump automatically
2.Examine the water automatically,stop the pump in the case of water shortaget,protect the pump from damage caused by dry-running
3.Completely replaced traditional pump control system composed of pressure switch,pressure tank and check valve,etc.
