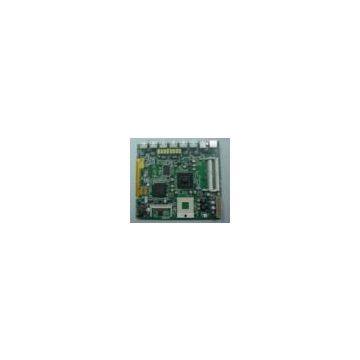

Industrial Firewall Motherboard WP-GM45-6LAN

System

CPU Support Intel Pentium Processor

Package type: Micro-FCPGA479 (Socket-P)

Front side bus: 667/800/1066 MHz

Chipset Intel GM45 & ICH9M

Memory Two DDRIII 800/1066 up to 8GB

BIOS AMI PnP 8Mb SPI ROM

Display Intel integrated extreme GMA 4500MHD

(Graphic Media Accelerator) Technology

Peripheral Support

2 x serial ATAII interface with 300MB/s transfer rate

2 x USB connector,

2 xLED(PWOR_ LED+HD_ LED

1 x RS-232(RJJ 45)Port

6 x LAN Port

Power connector ACPI 1.0 compliant, supports power saving mode

Expansion One PCI Express mini card, One PCI

Watchdog Timer 1-255 step,can be set with software on Super I/O

Hardware Monitor Operating voltage, CPU temperature and fan speed

Dimensions 424 x 300mm

Environmental factors

Operation Temp: -20ºC - 45 ºC

Humidity: 5% - 95%

Certifications CE, FCC ROHS
