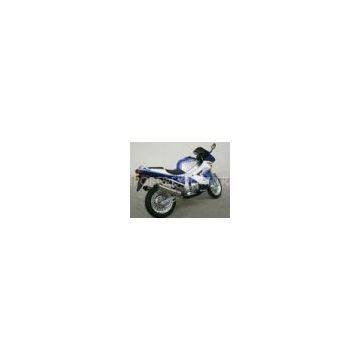

Four Stroke 200cc Manned Drag Racing Motorcycles , Rode Racing Motorcycle


 Four Stroke 200cc Manned Drag Racing Motorcycles , Rode Racing Motorcycle

Description:

Engine model   L: C163FML
Engine type:    Vertical,Single,double bank,4-stroke,wind-cooled
Cylinder displacement(ml): 193.3
Bore*Stroke:   63.0×62.0
Maximum PowerKw/(r/min):     11.0 /7500
Maximum TorqueN·m/(r/min):      14.0/6000
Minimum fuel consumption(g/kW·h)   :≤354
Compression ratio  :9.0:1
Start type: Electrical
Transmission type  : Chain
Brake type(F/R):    Disc/Disc
Brake distance(m/20km):   ≤7.00
Gear-Shifting type  : 5-range constant mesh gear
Clutch type:     manual,wet-type,multidisc clutch
L×W×H(mm)  : 2100×790×1160
Minimum turning radius (mm): 1900
Maximum gradability(°):   ≥30°
Seat cushion (mm):     820
Min.Ground Clearance(mm):    200
Max.speed(kw/h): ≥100
Tyre(F/R):     110/70-17/140/70-17(TubeLess)
Body kits materials:     ABS
Colour  : Red,Black,Blue
Packing size(mm)   : 1970×590×1400
N.W.(kg)    : 150
G.W.(kg)    : 170
Fuel tank Maximum capacity(L):  16
Primary transmission ratio: 4.055
Final transmission ratio:  2.833
First gear:  2.769
Second gear:   1.882
Third gear: 1.4
Fourth gear:     1.13
Fifth gear:  0.96


Applications:

Motorcycle, powered by gasoline engine, operate the front wheel steering with two wheel or 3 wheels. Lightweight flexible, driving fast. Widely used for patrol, passenger and cargo transportation, etc., it is a kind of wide application, fast, economic and comfortable means of vehicles. It has bicycles’ flexibility and portability, cars’ mobility and recommend suite at the same time.
