Certification:CE ROHS ETL GS CB PSE SAA,DLC on the way

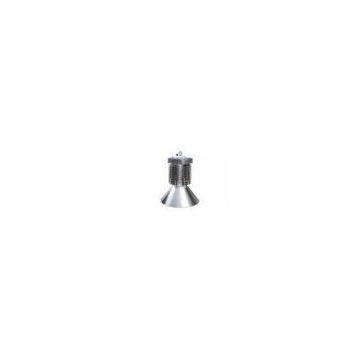

High Lumen 300 Wattage LED High Bay Lighting IP40 / IP64 Energy Saving
Quick Detail:
1. CREE chip and Meanwell driver
2. Patented thermal management(Mutiple LED layout design and ultra Fold-Fin heatsink technical design)
3. Extremely light weight and easy installation
4. up to 3 Years warranty
5. CE ROHS ETL marked
Description:
Key Features
LEDs from CREE ,Philips Lumileds , Osram or LG , together with Meanwell drivers , provide up to 5 years warranty Unique patented thermal management design to ensure low LED junction temperature . Extremely light weight to enhance the safety use and installation Available products with maximum power up to 400w, ultra-high luminous output of up to 38000lm. Both IP40 and IP65 , prismatic and aluminum reflectors with different optical bean angles are available . Easy installation and maintenance , dust prevention , longer lifetime with high lumen maintenance .Design Innovation
Build-in heatpipe technology
excellent heat conduction performance by incorporating mature heatpipe technology inside the heatsink . Phase change materials(PCM) inside the heatpipe helps to effectively bring the heat away from LED moduleFold-Fin Heatsink(FFH) technology
Formed by thin aluminum sheets and pressed into the desired fin structures by fully automated machines . Different parts of heatsink are then soldered together via a high temperature furnace Resulting in a heatsink with large total surface area and exremely light weightExtra-safe fixture design
Additional stainless steel sling provides extra safe mechanism especially for vibrating environment Build-in bolt design to strongly bond together different housing parts .Specifications:
|
Input Voltage |
AC90V-264V |
|
|
Current Frequency |
50HZ-60HZ |
|
|
LED Light Source |
CREE |
|
|
LED Qty |
150 pcs |
|
|
LED Power |
300W |
|
|
Total System Power |
330 W |
|
|
Led Luminous Efficiency |
100-120lm /W |
|
|
Led Initial Luminous Flux |
28500 Lm |
|
|
Average Illuminance (80 / 100 degree beam angle) |
6M |
587 Lux |
|
8M |
330 Lux |
|
|
10M |
211 Lux |
|
|
Illuminance Area (80 / 100 degree beam angle) |
6M |
Φ14.3M |
|
8M |
Φ19.1M |
|
|
10M |
Φ23.9M |
|
|
Illuminance Uniformity |
＞0.8 |
|
|
Color Temperature |
4000K-7000K |
|
|
Color Rendering Index |
Ra＞70 |
|
|
Light Distribution |
symmetric /circle spread |
|
|
Illuminance Design |
LED+Reflector |
|
|
LED Junction Temperature |
≤60℃ (@ Ta=30℃) |
|
|
Working Temperature |
-30℃ ～ 50℃ |
|
|
Storage Temperature |
-25℃ ～ +65℃(Best 25℃) |
|
|
|
