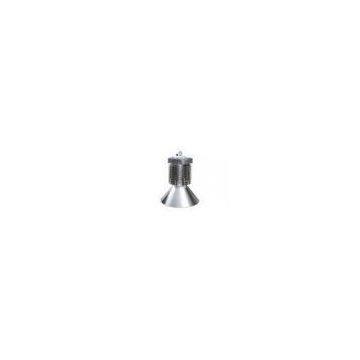

Long Life 300w High Bay LED Lighting High Power With Prismatic Reflectors

Delivery Time:10-15days
Certification:CE ROHS ETL GS CB PSE SAA,DLC on the way

Long Life  300w  High Bay LED Lighting  High Power With Prismatic Reflectors

Quick Detail:

1. CREE chip and Meanwell driver

2. Patented thermal management(Mutiple LED layout design and ultra Fold-Fin heatsink technical design)

3. Extremely light weight and easy installation

4. up to 3 Years warranty

5. CE ROHS ETL marked

Description:

Key Features

LEDs from CREE ,Philips Lumileds , Osram or LG , together with Meanwell drivers , provide up to 5 years warranty Unique patented thermal management design to ensure low LED junction temperature . Extremely light weight to enhance the safety use and installation Available products with maximum power up to 400w, ultra-high luminous output of up to 38000lm. Both IP40 and IP65 , prismatic and aluminum reflectors with different optical bean angles are available . Easy installation and maintenance , dust prevention , longer lifetime with high lumen maintenance .

Design Innovation

Build-in heatpipe technology

excellent heat conduction performance by incorporating mature heatpipe technology inside the heatsink . Phase change materials(PCM) inside the heatpipe helps to effectively bring the heat away from LED module

Fold-Fin Heatsink(FFH) technology

Formed by thin aluminum sheets and pressed into the desired fin structures by fully automated machines . Different parts of heatsink are then soldered together via a high temperature furnace Resulting in a heatsink with large total surface area and exremely light weight

Extra-safe fixture design

Additional stainless steel sling provides extra safe mechanism especially for vibrating environment Build-in bolt design to strongly bond together different housing parts .

Specifications:

Input Voltage	AC90V-264V
Current Frequency	50HZ-60HZ
LED Light Source	CREE
LED Qty	150 pcs
LED Power	300W
Total System Power	330 W
Led Luminous Efficiency	100-120lm /W
Led Initial Luminous Flux	28500 Lm
Average Illuminance (80 / 100 degree beam angle)	6M	587 Lux
8M	330 Lux
10M	211 Lux
Illuminance Area (80 / 100 degree beam angle)	6M	Φ14.3M
8M	Φ19.1M
10M	Φ23.9M
Illuminance Uniformity	＞0.8
Color Temperature	4000K-7000K
Color Rendering Index	Ra＞70
Light Distribution	symmetric /circle spread
Illuminance Design	LED+Reflector
LED Junction Temperature	≤60℃ (@ Ta=30℃)
Working Temperature	-30℃ ～ 50℃
Storage Temperature	-25℃ ～ +65℃(Best 25℃)
