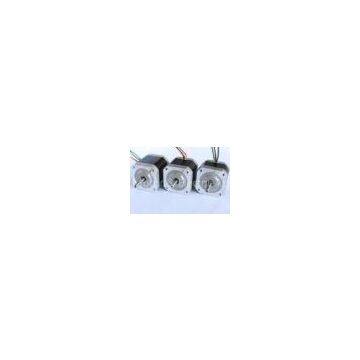

Unipolar / Bipolar 42mm 1.8 Two Phase Stepper Motor For CNC Machine

FOB Price

US$ 4 - 100 / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CW		Place of Origin	China
Model Number	NEMA17,42BH,42BYG

Product Description

Delivery Time:7-25days
Certification:CE, ISO9001,ROHS,SGS

Unipolar / Bipolar 42mm 1.8º Two Phase Stepper Motor For CNC Machine

NEMA 17(inch)42BYG(MM)Series two-phase (four-phase ) stepper motor used for CNC machine

Description:

Common NEMA 17 42mm stepper motor
Model: NEMA17, 42BH, 42BYG
Phase: 2phase or 4 phase
Stepper Angle: 1.8º
Low Current
Small Holding Torque
Lead wire no.: 4 or 6 wires
Speed: low or high speed
Shape: Square

Application:

Our application fields refer to robot, music fountain, industrial electronic automation equipment, medical instrument, advertising equipment, stage lighting equipment, printer, textile machinery, external applicable equipment of computer, CNC router, etc.
Step Angle-----------------------------1.8°±5%
Temperature Rise--------------------------80℃ Max.
Insulation Resistant--------100MΩ Min.,500VDC
Dielectric Strength--------500VAC for one minute
Ambient Temperature ----------—20℃~+50℃
Shaft Radial Play-------------------------------0.02Max.(450 g-load)

NEMA 17(inch) 42BH(MM)series step-motor parameter list
Technicial Parameters:
New Model	Old Model	No.of Phase	Voltage	Current	Inductance	Resistance	Holding Troque	Rotor Inertia	Weight	Length	Lead Wire Number
			V	A	mh±20％	Ω±10％	kg.cm	g.cm²	kg	mm	NO.
42BH34-016B	42BYG016-06	4	12	0.16	55	75	0.95	20	0.2	34	6
42BH34-024A	42BYG225A03-58	2	12	0.24	64	50	0.92	20	0.24	34	4
42BH34-060B	42BYG020A-16	4	12	0.6	14	20	1.7	20	0.2	34	6
42BH34-080A	42BYG024-49	2	3.2	0.8	5	4	1.6	20	0.2	34	4
42BH38-016B	42BYG205	4	12	0.16	65	75	1.32	25	0.24	38	6
42BH38-120A	42BYG206	2	3.2	1.2	4.9	2.7	2.64	25	0.24	38	4
42BH39-040B	42BYG028-06	2	12	0.4	23	30	2	30	0.6	39	6
42BH40-010B	42BYG101-02	4	12	0.1	110	120	3.2	30	0.24	40	6
42BH40-060B	42BYG028-01	4	12	0.4	23	30	2	30	0.24	40	6
42BH40-040A	42BYG023-16	2	11.5	0.4	32	29	2	30	0.2	40	4
42BH40-060D	42BYG020	4	12	0.6	14	20	1.7	30	0.2	40	5
42BH44-030A	42BYG304	2	12	0.3	80	40	2.8	30	0.26	44	4
42BH44-125A	42BYG313-03	2	3.12
