Aluminium Composite Panel

Ningbo Lingtian Metal Material Co.,ltd
Aluminium Composite Panel thumbnail-1
Aluminium Composite Panel thumbnail-2
Aluminium Composite Panel thumbnail-3
Aluminium Composite Panel photo-1

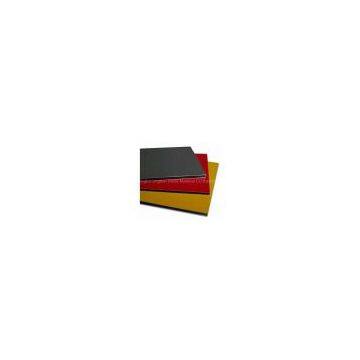

Aluminium Composite Panel photo-2
Aluminium Composite Panel photo-3
US$ 1 - 1 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
lingtian
Place of Origin:
China
Model Number:
1060, 1070, 1050, 1100, 1200, 3003, 3004, 3105, 5052, 6061, 8011
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name lingtian
Place of Origin China
Model Number 1060, 1070, 1050, 1100, 1200, 3003, 3004, 3105, 5052, 6061, 8011


PE Aluminium Composite Panel


Aluminium composite panel

The panel consists of  two sheets of corrosion resistant aluminum permanently bonded to polyethylene core material. The front aluminum coats PE(Polyester) paint and the other with service coating or mill finish.Because of its excellent flexibilty,sound insulation and other features , the panel is widely used as interior decoration materials in the world.

Specification


Panel Thickness(mm)

2mm-8mm

Aluminium Skin Thickness(mm)

0.08mm-0.5mm

Width(mm)

1220mm-2000mm

Length(mm)

2440mm-8000mm


Feature

-Light weight, high strength, extreme rigidity, superior impact resistance,

-excellent surface flatness and smoothness ,

-heat insulation, sound insulation, fire-resistance,

-acid-resistance, alkali-resistance, good weatherproofing and non-resonance

-various uniform colors ,can be easily processed and fabricated, quickly installed,

-elegant and magnificent, good flexibility fits various designs,

-easily maintenance, simply cleaning

Applications

※ Constructional exterior curtain walls;

※Decorative renovation for storey-added old buildings;

※ Indoors decoration for interior walls, ceilings, bathrooms, kitchens and balconies;

※ Advertisement board, display platforms and signboards;

※Wallboard and ceilings for tunnels;

※ Raw materials in industrial purpose;

※Materials used for vehicle and boat.

SGS Test report for 3mm polyester A.C.P


ItemsStandard index of quality productResult
AppearanceClean surface without swell,flaws.scrath and aberrationpass

aberration

Length: ± 3mm0mm~+1mm

Width: ± 2mm0mm~+1mm

Thickness: ±0. 2mm0mm~+0.14mm
Deviation of dimensionDeviation of diagonal: ≤ 5mm0mm

Out of straight at sides: ≤ 1mm/m0.2mm/m

Warp: ≤ 5mm/m1mm/m
Thickness of coating≥ 16um17um （av.18 ）
Deviation of luster≤ 102.6 （ av.20 ）
Hardness of pencil≥ HB2H
Toughness of coating≤ 3T1T
AdhesiveNot less than Grade1Squaring off method of Grade 0 Grade 1marking method of rolling line
Impact strength50Kg.cm Without paint off and crackPass
Boiling water resistance(Boiling for 2h without change)Unchanged
Acid resistanceImmerse surface with2%HCI(v/v)for 24H without changeUnchanged
Oil resistanceImmerse surface with 20# engine oil for 24h without changeUnchanged
Solvent resistanceClean 100 times with dimethylbenzene without changeBottom unrevealed
Cleaning resistance≥ 10000 （ ≥ 10000 times without change）Unchanged
Abrasion resistance Density of surfaceSpecified value: ± 0.5Kg/m 23.63Kg/m 2
Bend strength≥ 60Mpa79.6Mpa
Flexuous modulus of elasticity≥ 1.5×10 4 Mpa2.19 × 10 4 Mpa
Through resistance≥ 5.0kN6.25kN
Cutting strength≥ 20.0Mpa25.7Mpa
180 o peel strength≥ 5.0N/mm6.2N/mm
Resistance to change of temperature-40 o C~80 o C 20 cycles without changeUnchanged
Heat deformation temperature≥ 95oC116 o C
Coefficient of heat expansion≤ 4.00×10 -5 oC -12.47 × 10 -5 o C -1
