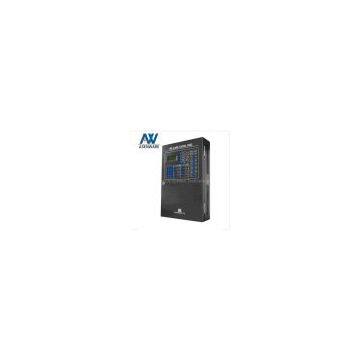

Addressable Fire Alarm Control Panel 100/200/324 Points

          AW-AFP2188 system capacity: 324 points (non-polarity, two wire bus, fully mixed coding)

             l  AC input voltage: AC 220V±20%  50Hz

                AC input power: 120W

             l  DC power: DC24V 5.0Ah, two fully sealed maintenance-free DC12V 5.0Ah storage batteries connected in series

                The 24V DC power has a long-term constant output current of 6A.

                The 5V DC power has a long-term constant output current of 4A.

             l  Circuit bus: two-wire system; total length: ≤1500m

             l  Voltage UL of the circuit bus:

                 +20V≤UL≤+26V(when the DC power is operating)

                 +24V≤UL≤+26V(when the AC power is operating)

             l  System working conditions

                1.      Temperature: -10°C~+50°C

                2.      Humidity: ≤95%

                3.      Power supply:  AC   220V    50HZ

                                                     DC    24V    6A

                4.      Output contact capacity:         AC   220V   1A

                                                                             DC   27.6V   3A

              See the specifications of detectors and modules for the specific technical parameters of the detectors, the interface

              module, the monitoring module and the control module.
