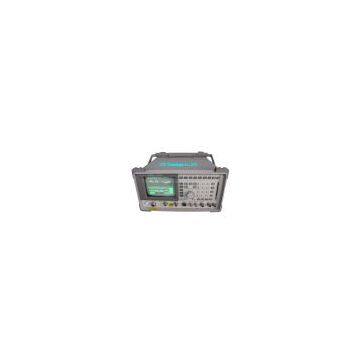

Agilent/HP 8920A Wireless Communication Test Set

HP 8920A is a full-feature, one-box test set designed to meet service andrepair needs in the cellular and land mobile communications market. Combining22 instruments, the HP 8920A offers full functionality needed in testingcellular phones, land mobile radios, and communications systems up to 1 GHz.

Test andTroubleshoot Faster

The HP 8920Adecreases test and troubleshooting time by simplifying standard measurementtasks and providing extensive capability in one box.   Transmitters andreceivers are simply characterized with single-key RX, TX, and duplextests.  Measured results are displayed on a single screen as eitherdigital measurements or analog bar graphs.  All settings and measurementsare easily accessed and changed using the front-panel knob, and all settingscan be saved in nonvolatile save/recall registers or on a SRAM card media forfuture access.

Spectrum Analyzer with Tracking Generator and Adjacent Channel Power

The HP 8920A'soptional synthesized spectrum analyzer measures signals from 400 kHz to 1 GHzwith variable spans from 5 kHz to 1 GHz (full span).   Display resolutionis selectable from 1, 2, or 10 dB per division.  The tunable markerprovides automatic readout of frequency and amplitude, or of relative frequencyor amplitude from a reference.  The tracking generator included with thespectrum analyzer allows for swept characterization of devices with fullysettable amplitude and sweep spans (to 1 GHz).  The newly added adjacentchannel power measurement capability includes both variable bandwidths andvariable frequency offsets.   Typical performance is -70 dBc.
