Digital SMD 3 in 1 RGB Indoor Led Curtain Screen Video Full Color for Club With High Definition

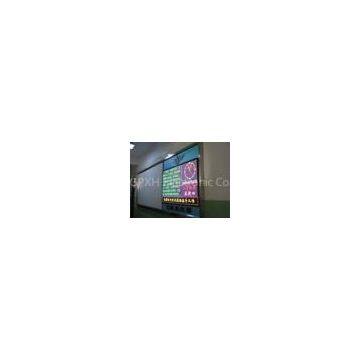

Digital SMD 3 in 1 RGB Indoor Led Curtain Screen Video Full Color for Club With High Definition photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
GPXH
Place of Origin:
China
Model Number:
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Brand Name GPXH
Place of Origin China
Delivery Time:3~7 days
Digital  SMD 3 in 1 RGB indoor led curtain screen video full color for club with High Definition Specifications
1.Indoor SMD 3 in 1
2.Super bright
3.Support any format of video
4.CE,RoHS

Technical parameter :

Pitch size 5mm
Module size 160mm*80mm
Module pixel(dots) 32dots*16dots
Pixel configuration 1Red,1Green,1Blue
LED chip Silan
Color scale 65536degree/16777216colors
Pixel density 40000pixels/square meter
View angle(H/V) ≥120/120degree
Brightness ≥800cd/square meter
Brightness adjustment 64 level automatic or manual
View distance 3--100m
Power consumption 100-1600W/square meter
Net weight less than 45kg/square meter
Operating temperature —25°C~+60°C
Operating humidity 10%—95%RH
Life time ≥100,000hours
Out of control dot ≤1/10,000
Whole Display Flatness ≤1mm Juncture
Exchange frame speed >150frames per second
Refresh frame frequency 600Hz
Control distance

120m (without repeater), single mode fiber:20km,

      multi mode fiber: 500m

Power  110V/220V±15% 50Hz
Operating system Windows98/Me/2000/Xp
Drive mode constant current driving, 1/8 scan
Display mode VGA640X480—VGA1600X1024
Protections for outdoor display   IP54
Maintenance way Rear access
Accepting signal PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI
