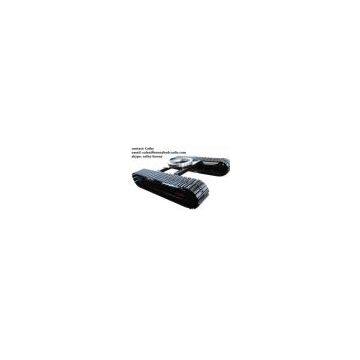

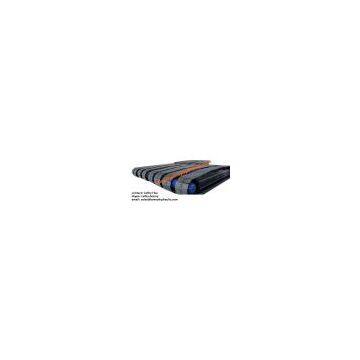

8 Ton Steel Crawler Undercarriage (Steel Track Chassis)

8 Ton Steel Crawler Undercarriage (Steel Track Chassis) thumbnail-1
8 Ton Steel Crawler Undercarriage (Steel Track Chassis) thumbnail-2
8 Ton Steel Crawler Undercarriage (Steel Track Chassis) thumbnail-3
8 Ton Steel Crawler Undercarriage (Steel Track Chassis) photo-1
8 Ton Steel Crawler Undercarriage (Steel Track Chassis) photo-2
8 Ton Steel Crawler Undercarriage (Steel Track Chassis) photo-3
US$ 1 - 1 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
kemer
Place of Origin:
China
Model Number:
sales@bonnyhydraulic.com
Contact Supplier Request Quote Chat Now
Ningbo Pioneer Hydraulic Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name kemer
Place of Origin China
Model Number sales@bonnyhydraulic.com

8 ton steel crawler undercarriage manufacturer

Steel track frame, steel track chassis, steel track system, steel crawler undercarriage, steel tracked undercarriage, drilling rig steel track undercarriage, crusher steel track undercarriage, excavator track undercarriage



Model: KST-8000

Load capacity: 8000kgs

Travelling speed: 0-6km/hr

Gradient: 30 degree

Track drive: Dual speed final drive

Dimension: different dimensions and requirements are available.

Delivery Time: 10-15 days

Warranty: 12 months

Export area: Australia, German, Ireland, United States, Indonesia, Turkey, India etc.


More than 100 models from 0, 5 to 60 ton of loading capacity, steel or rubber tracked, fixed or with widening system customizable on the requirement of our customers


Years of experience in this field, allow Kemer to be at now a leading manufacturer of crawler undercarriages and to have a full range of products for all applications and a capability in design new undercarriages suitable to any customer need.


The abilities and skillness gained over the years, allow now our technicians to handle undercarriage components as a tool for the realization of any project. An undercarriage is no longer an assembly of components, but a machine designed for a purpose.


Any machine has its own requirements and our engineers know what they are.


Today Kemer designs and manufactures undercarriage to major OEMs worldwide, providing a dedicated and timely service, before, during and after the undercarriage construction and ensuring a flawless after-sales service set to follow customers in 40 countries where are also working at now.

MODEL

Dynamic
capacity

Static
capacity

Weight
kg.

Press. Bar

oil flow
L/min

Torque
Nm to
engine

Grad.

Speed
km/h

KST-3500

3500

4000

750

220

35

4723

65%

2/3.2

KST-6000

6000

7000

1350

220

55

8330

65%

2/3.7

KST-8000

8000

9500

1830

300

82

11700

65%

2.8/4.7

KST-10000

10000

11300

2350

350

100

14800

65%

3/5.1

KST-12000

12000

15000

2950

350

124

22500

65%

2.9/4.9

KST--15000

15000

18000

3300

350

140

24000

65%

3.2/5.5

KST-20000

20000

25000

4300

350

220

38000

65%

3.5/5.4

KST-30000

30000

37000

6500

330

260

59000

65%

2.5/4.6

KST-40000

40000

480000

7100

350

290

72800

65%

2.3/4.3





MODEL

A
Length

B
Center Distance

C
Height

D
Total Width

E
Width of track shoe

F
Height of Cross beam

No. of
roller

KST-3500

2030

1500

485

1800

300

225

4+4

KST-6000

2467

1950

549

1700

300-400

240

5+5

KST-8000

2783

2265

548

1800

400-450

255

8+8

KST-10000

3800

3200

600

1700

400-500

280

9+9

KST-12000

3282

2575

720

2000

400-600

345

9+9

KST-15000

3666

2923

753

2000

500-800

360

8+8

KST-20000

4065

3323

786



500-800

375

8+8

KST-30000

4530

3730

836



500-800

405

9+9

KST-40000

4888

4090

880



500-800

420

10+10



Standard model for your reference, Kemer also offers custom built units to meet specific customer requirements.
