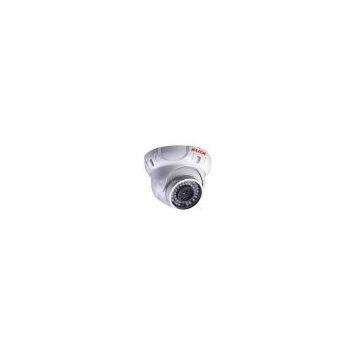

1.3 MP CMOS Low-Illumination IR Dome IP CCTV Security Camera
US$ 88 - 88
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Place of Origin:
China
Model Number:
HCH5316L
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
1.3 Megapixel CMOS IP Low-Light CCTV Indoor CameraUS$ 89 - 89MOQ: 1 Pair -
1.3 MP CMOS Low-Illumination Waterproof IR Bullet IP CCTV Security CameraUS$ 79 - 79MOQ: 1 Piece
-
1.3 MP CMOS Low-Illumination Box IP Security CameraUS$ 53 - 53MOQ: 10 Pieces
-
1.3 MP CMOS Low-Illumination IR Waterproof Bullet IP CameraUS$ 88 - 88MOQ: 1 Piece
-
CCTV 1.3 MP CMOS Security Low-Illumination IR Surveillance Dome IP CameraUS$ 1 - 1MOQ: 89 Pairs
Place of Origin
China
Model Number
HCH5316L
| Model | Model | HCH5316L | |
| Name | MEGAPIXEL Low-light NETWORK IR DOME CAMERA | ||
| Camera | Image Sensor |
|
|
| Minimum Illumination | 0.01Lux @(F1.2,AGC ON),0 Lux with IR | ||
| Electronic Shutter | auto | ||
| Lens Standard | 4mm/6mm /8mm/12mm/16mm@ F1.2 | ||
| Angle of View(Pan) | 90°~ 20° | ||
| Range | Pan: 0°~ 360°; Tilt: 0°~ 75° | ||
| Lens Mount | Φ14 | ||
| Day & Night | ICR | ||
| Wide Dynamic Range | - | ||
| Compression Standard | Video Compression | H.264 main profile level 3 | |
| Video Bit Rate | 32 Kbps~4Mbps | ||
| Image | Effective Pixels | 1280×960 | |
| Frame Rate | 50HZ | First Stream:25fps (1280×960),25fps (640×360); Second Stream:25fps(640x360) | |
| 60HZ | First Stream:30fps (1280×960),30fps (640×360); Second Stream:30fps(640x360) | ||
| Video Parameter | Saturation/Brightness/Contrast adjustable through client software or web browser | ||
| Network | Dual Stream | support | |
| Intelligent Alarm | Motion detection(4 independent zones available) | ||
| Protocols | TCP/IP\\HTTP\\TCP\\ICMP\\UDP\\ARP\\IGMP\\SMTP\\FTP\\DHCP\\DNS\\DDNS\\NTP\\UPNP\\RTSP etc. | ||
| General | Reset button,Anti-flicker,Heart beat,Password protection | ||
| Interface | Communication | 1 RJ45 10M/100M self adaptive Ethernet interface and 1 RS-485 interface (Wi-Fi interface optional) | |
| General | Working Temperature | -10C°~ 50C° | |
| Humidity | 90% or less | ||
| IR Radiation Distance | up to 25M | ||
| Power Supply | DC12V±10% | ||
| Power Consumption | 7.5W MAX | ||
| 10W MAX IR ON | |||
| Dimensions(mm) | Φ138mmx108mm | ||
| Packing | 178mmx178mmx148mm | ||
| Gross Weight | 0.8KG |
