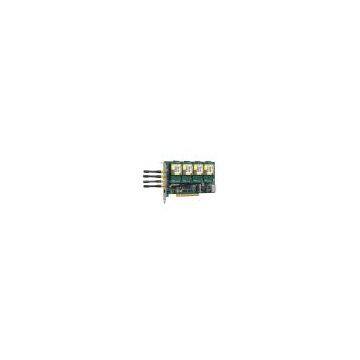

Scicent G400P Asterisk T1/E1/J1 Cards

Scicent G400P Asterisk T1/E1/J1 Cards thumbnail-1
Scicent G400P Asterisk T1/E1/J1 Cards photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Place of Origin:
China
Model Number:
G400P
Contact Supplier Request Quote Chat Now
Scicent Technologies Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number G400P

Product Spotlight

Scicent G400P provides scalable connectivity to GSM networks for your Linux machine. It supports up to 4 GSM channels and enables users to access the mobile network with their existing asterisk IPPBX.

  • Modular Design for GSM channels

  • Up to 4 Simultaneous GSM Calls (Per PCI Slot)

  • 3-Month “No Questions Asked” Return Policy

    • Overview

    The G400P provides scalable connectivity to GSM networks for your linux machine. It comes with fully GPLed drivers for the linux 2.4.X and 2.6.X kernels. The OpenVox GSM card can be connected to any other OpenVox card to build a real TDM switched PBX.

    G400P enables full flexibility to traditional telephony systems to go GSM network. It also allows systems integrators to transform highly priced fixed to mobile voice traffic into a much cheaper mobile to mobile call management, with considerable savings.

    G400P works with Asterisk®, Elastix®,PBX in a Flash, trixbox® and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

    Target Applications

  • GSM connectivity for PBX

  • Mobile PBX

  • GSM VoIP gateway

  • SMS gateway

  • GSM callback services

    • Technical Specifications

  • 4 GSM channels

  • 1 SIM card per GSM channel

  • Quad-Band GSM 850/ 900/1800/1900 MHz

  • Fast call setup

  • IMEI and PIN modification

  • SMS batch receiving/sending in text and PDU mode with decoding of MSC(Mobile Service Center), AT command availability

  • Support USSD, CLIP, CLIR

  • DTMF detection

  • DIGITAL audio quality (echo cancel)

  • 4 LEDs (network state indicators)

  • 32 bit 33MHz PCI and fully PCI 2.2 compliant

  • 32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec

  • Autosense compatibility with 5 V and 3.3 V PCI busses compatible

  • Support external antenna

  • Power: 30W Maximum at 3.3 V or 5 V.

  • Operation temperature: 0°C to 50°C

  • Storage temperature: -40°C to 125°C

  • Dimension: 17.9cm*9.9cm*1.8cm

  • Weight: 225g

    • Operating Systems

  • Linux (all versions, releases and distributions from 1.0 up)

    • Minimum Hardware Requirement

  • CPU: 1000-Mhz

  • RAM: 128MB

  • Available PCI Slot

    • Certification

  • FCC Part 15, CE(EN55022, EN55024) and RoHS Compliant

    • Five Year Warranty!
