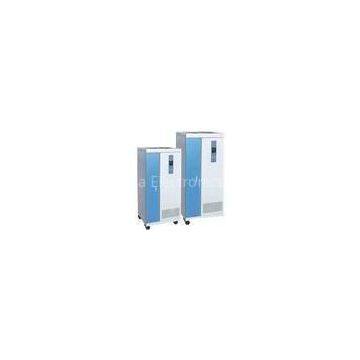

6KVA 10KVA 15KVA high frequency online indoor UPS double conversion Controlled by DSP + CPU

6KVA 10KVA 15KVA high frequency online indoor UPS double conversion Controlled by DSP + CPU   Specifications 1. True online double conversion
2. Controlled by DSP+CPU
3. DC start & Auto restart function
4. Adaptable with generator

Features:

1.True on-line double conversion technology
2.Highest reliability and maximum performance for power parallel and redundancy N+X
3.Super wide input voltage range and fully AVR
4.High input power factor
5.Zero transfer time
6.Controlled by fully digitized DSP+CPU
7.Self diagnosis and protection
8.Protection against all types of power problems
9.Miniaturization design,save on invaluable space
10. No add-on CNTL unit required for future  expansion
11.Advanced IGBT power components,which enhancing the overall reliability and conversion efficiency
12.Equipped with Maintenance Bypass Switch to achieve online maintenance
13.Smart local and distance  monitoring capability with RS232 port,and compatible with SNMP
14.LCD display with information available at a glance

Model: HP-	E6022M	E6022L	E1032M	E1032L	E1034L	E1534L	E2034L
C6022M	C6022L	C1032M	C1032L	C1034L	C1534L	C2034L
Max.capacity(VA/W)	6KVA	6KVA	10KVA	10KVA	10KVA	15KVA	20KVA
Input	Input wiring	Single-phase line two+Ground line	Three-phase line four+Grround line
Voltage range	176--276VAC	304--478VAC
Frequency range	46--54 Hz
Power factor	≥0.95
Output	Voltage	220VAC±2%
Frequency	Input synchronized the supply frequency(line mode), 50 Hz±0.1%(Battery mode)
Power factor	0.7
Current crest artio	3:1
Wavefrom	Sine wave
Overload capacity	110%-150% load, change to bypass after 3 seconds, 150% load holds 300ms.
Standard backup time(full or halfoad)
