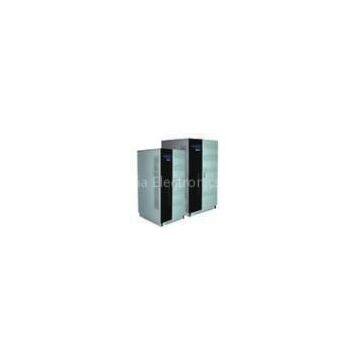

Three Phase Input Three Phase Output Low Frequency Online UPS 10KVA - 200KVA With CPLD / DSP

Three Phase Input Three Phase Output Low Frequency Online UPS 10KVA - 200KVA With CPLD / DSP thumbnail-1
Three Phase Input Three Phase Output Low Frequency Online UPS 10KVA - 200KVA With CPLD / DSP photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Jendia/OEM
Place of Origin:
China
Model Number:
Contact Supplier Request Quote Chat Now
Shenzhen Jendia Electronics Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Jendia/OEM
Place of Origin China
Delivery Time:15-20days
Certification:CE,ISO9001
Three phase Input three phase output low frequency online UPS 10KVA - 200KVA with CPLD / DSP   Quick Details
Place of Origin: China (Mainland) Brand Name: OEM Model Number: GP33 Series
Phase: Three Phase Protection:
over discharge output surge short ciruit,short circuit over chrage over discharge phase failure
 Weight: 210-1520kgs
Output Voltage:
220/380V,230/400V,240/415V,25%
 Type: Standby Application: Telecommunications
input voltage: 220/380v ,230/400v,240/415v input phase: three phase +N+G output frequency: 50-60Hz
output phase: three phase +N+G output wave: pure sine wave noise: 60-65dB
display: LED LCD communitcation: RS232.SNMP dry-contact instan recovery time: <10ms
Specifications

Low frequency online UPS
*DSP control
*Extended backuptime
*Isolate transformer
*N+X parallel redundancy

Specification:

Model GP33 10 ~ GP33 200 series UPS
UPS Capacity (VA) 10K 15K 20K 30K 40K 60K 80K 100K 120K 160K 200K
Noninal output capacity 8KW 12KW 16KW 24KW 32KW 48KW 64KW 80KW 96KW 128KW 160KW
Operate type Double conversion online type
Input voltage 220V/380, 230/400, 240/415V, ± 25%
Phase Three phase +N+G
Frequency 50Hz/60Hz± 5%
Input power factor 0.95(with input filter)
Soft start 0-100% 5sec
Output Voltage 220V/380, 230/400, 240/415V, ± 1% (stable load), ± 5%(active load)
Phase Three phase +N+G
Frequency 50/60Hz (1± 5%, AC mode), 50/60Hz (± 1%, Battery mode)
Power factor 0.8
Output wave Pure sine wave
Distortion Linear load < 3%, non linear load< 5%
Battery voltage Standard battery voltage 360V/384V
Floating charge 405V/432V
Terminal voltage 315V/336V
Charge current 1A-50A (Can calculate and set according to battery configuration software)
Maximum discharge current 28 42 56 85 113 169 225 282 338 381 507
Main Function Active voltage change 0-100%± 5%
Instant recover time < 10ms
Imbalance voltage < ± 5%, < ± 1%( Balance load voltage)
Overload capacity 125%→ 10min, 150%→ 1min
Static switch Automatic
