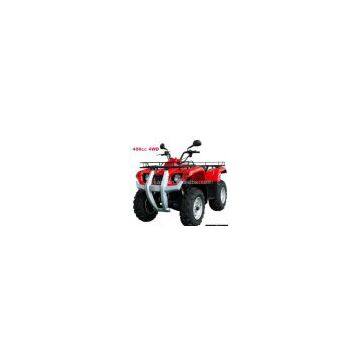

Sell EEC & COC 400cc 4WD ATV/Quad

Model No.:YT-ATV400
Product Origin:China
Brand Name:
Price Terms:
Payment Terms:
Certification:EEC, COC, WMI
Description:Specifications: 1) Engine type: single cylinder, air-cooled, 4-stroke 2) Power: 16kW/6,500rpm 3) Max. torque: 26N.m/5,000rpm 4) Min. ground clearance: 100mm 5) Wheel base: 1,240mm 6) Fuel tank capacity: 6.6L 7) Transmission mode: chain 8) Start mode: electric/manual 9) Tire: a) Front wheels: 25 x 8-12 b) Rear wheels: 25 x 10-12 10) Max. speed: 75km/h 11) Break type (F / R): disc / drum 12) Power source: 12V, 20Ah 13) Height of seats: 860mm 14) Dry weight: 135kg 15) Load capacity: 220kg 16) Climbing degree: 22 17) Front hanging: double arm-swing 18) Rear hanging: integral 19) Cylinder size: 83 x 71.6mm 20) Displacement: 387.4ml 21) Transmission: 5 gears with one reverse gear, one neutral-gear, automatic clutch 22) Min. turning radius: 2,900mm 23) Parking trig: mechanical lock 24) Ignition mode: CDI 25) Engine oil: 2.9L 26) Gear oil: a) Front tank: 0.4L b) Rear tank: 0.25L 26) Max. number of riders: 2 27) Lubrication: press splash 28) Compression proportion: 8.7:1 29) Gas cylinder number: 1 30) Product dimensions (L x W x H): 2,100 x 1,125 x 1,175mm Outer packing: Carton dimensions: 2,150 x 1,160 x 880mm Conveyance: Qty/20' GP: 10 units Qty/40' GP: 22 units Qty/40' HQ: 33 units
