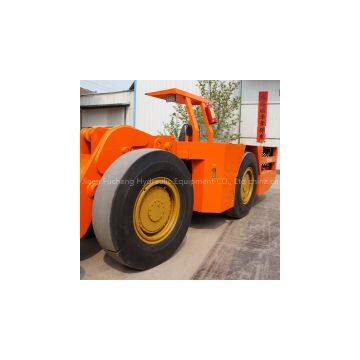

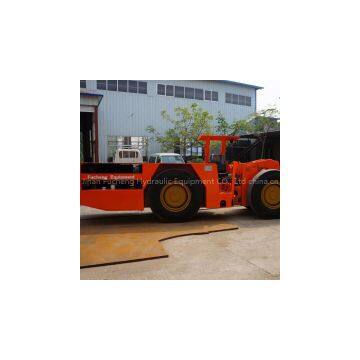

Help CenterFCYJ-3D Underground Mining Articulated Hydraulic 4x4 Wheel Diesel Front LHD,load Haul Dump
Related Products
-
FCYJ-4.5D Underground Mining Articulated Hydraulic 4x4 Wheel Diesel Front LHD,load Haul DumpUS$ 430000 - 450000MOQ: 1 Set -
FCYJ-4D Underground Mining Articulated Hydraulic 4x4 Wheel Diesel Front LHD,load Haul DumpUS$ 360000 - 380000MOQ: 1 Set
-
FCYJ-2 Diesel LHD Underground Mining Rock Tunnel ScooptramUS$ 10000 - 115000MOQ: 1 Set
-
FCYJ-2 Diesel LHD Underground Mining Rock Tunnel ScooptramUS$ 10000 - 115000MOQ: 1 Set
-
Scooptram FCYJ-2D 4 Wheel Load Haul DumpUS$ 100000 - 115000MOQ: 1 Set
Introduction:
1. Engine
(1)Brand： DEUTZ
(2)Model： F8L413FW
(3)Grade： Low pollution air-cold
(4)Rated power：136kw/2300rpm
2.Hydraulic torque converter
(1)Brand： DANA
(2)Model： C5402
(3)Grade： Single-stage three-element, with hydraulic driving device
3.Transmission:
(1)Brand： DANA
(2)Model： R32421
(3)Gears： 4 gears
4. Driving bridge
(1)Brand：DANA
(2)Model：16D2149
(3)Grade：spring brake planetary drive axle（front bridge with NO-SPIN Differential ）
5. Braking system
Integrated Parking brake, crane brake, emergency brake
Spring brake，Hydraulic loose brake，complete sealing, multi-disc wet braker
6. Hydraulic system
Composed of working system, tilting system, steering system, Foot valve, charging valve adopt American mico component. Main pump is American COMMERCIAL, all cylinder sealing are American Parker
7. Purification Device
Canada NETT brand Platinum catalytic offgas and mute purifier。
8. Main parameters:
Maximum Traction：198KN
Max.Shovel Force：130KN
Max.Loading: 6000kg
Bucket Capacity: 3M3
Bucket lifting time: 5s
Bucket down time: 3.5s
Bucket tipping time: 5s
Speed(km/h): empty load full load
1 gear: 5.3 5.2
2 gear: 10.6 10.4
3 gear: 17.6 17.2
4 gear: 28.8 27.7
Engine model: F8L413FW or BF6M1013C
Power: 136kw/2300rpm or 148kw/2300rpm
Tire size: 17.5
