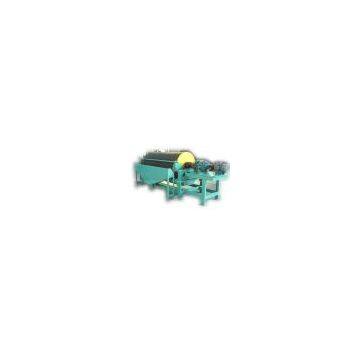

Wet magnetic separator of material below 3mm for sale this summer
Application fields:
Mineral processing
Materials:
Suitable for wet magnetic separation of pyrrhotite, roasting ore, ilmenite, and other materials whose size is below 3mm.
Product advantages:
This series of magnetic separation device has a simple structure, large capacity, easy to operate, easy to maintain and the other advantages.
Product features:
1, poor iron ore by the rough or broken in pieces after the election of the rough, rock, and so excludes waste, improve quality, reduce operation under load
2, for the reduction of Hematite closed roast will be not fully restore health and mine don't returned.
3, for the ceramic industry in the porcelain clay mixed iron removal, improve the quality of ceramic products and then burned.
4, burning coal, sand casting, refractory materials, as well as additional rows need to iron-removal operation.
Working principle:
After feeding boxes into the tank, the pulp, to flow under the action of sprinkler pipe in mine, particles diffuse into the tank's status to mining areas. In the role of the magnetic field, magnetic particles formed by magnetic polymer "magnetic" or "flux", "magnetic" or "flux" magnetic effect in the pulp, to pole movement, were attracted to the cylinder.Due to pole of polarity along cylinder rotating direction is alternating arranged of, and in work fixed does not dynamic, "magnetic mission" or "magnetic chain" in with cylinder rotating , due to pole alternating and produced magnetic mixing phenomenon, is inclusions in "magnetic mission" or "magnetic chain" in the of gangue, non-magnetic mineral in turned in the off down, eventually is suction in cylinder surface of "magnetic mission" or "magnetic Lotus" that is fine mine.
Specification:
Specification:
|
Model |
Cylinder diameter(mm) |
Cylinder length(mm) |
Cylinder speed(r/min) |
Feeding size(mm) |
Feeding rate(t/h) |
Power (kw) |
|
CTB6012 |
600 |
1200 |
<35 |
2.0 |
10-20 |
1.5 |
|
CTB6018 |
600 |
1800 |
<35 |
2.0 |
15-30 |
2.2 |
|
CTB7518 |
750 |
1800 |
<35 |
2.0 |
20-45 |
2.2 |
|
CTB9018 |
900 |
1800 |
<35 |
3.0 |
40-60 |
3 |
|
|
||||||
|
CTB9024 |
900 |
2400 |
<28 |
3.0 |
45-70 |
4 |
|
CTB1018 |
1050 |
1800 |
<20 |
3.0 |
50-75 |
5.5 |
|
CTB1021 |
1050 |
2100 |
<20 |
3.0 |
50-100 |
5.5 |
|
CTB1024 |
1050 |
2400 |
<20 |
3.0 |
60-120 |
5.5 |
|
CTB1218 |
1200 |
1800 |
<18 |
3.0 |
80-140 |
5.5 |
|
CTB1224 |
1200 |
2400 |
<18 |
3.0 |
85-180 |
7.5 |
|
CTB1230 |
1200 |
3000 |
<18 |
3.0 |
100-180 |
7.5 |
|
CTB1530 |
1500 |
3000 |
<14 |
3.0 |
170-280 |
11 |
