3yrs Warranty Stadium LED Lights

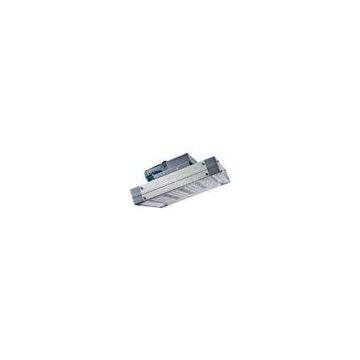

135W Energy Saving Stadium LED Lights IP65 With 3yrs Warranty


Quick details:

1.Long life

2.Energy efficiency

3.Improved visibility

4.Instant on /no restrike

5.Ease of installation

6.High efficiency reduces electricity cost

7.Significantly less generated heat

8.More than twice the average life of metal halide and high pressure sodium


Description:

ZGSM LLD series high power LED sport field light are designed for use in sport field, city streets, municipal
roadways, bridges, housing projects, public parks, parking lots, yards and gardens, and other settings with needs
for high-brightness general illumination during the night time. All of ZGSMs long life LED luminaires are designed to
meet the most demanding specification criteria while offering maximum energy savings, reduced maintenance
costs, and a superior quality of light.


Applications:

Sport field
Municipal Roadways
Bridges
Public Parks
Parking Lots


Specifications:

1.LED Wattage: 30W
2.Nominal Wattage: 135W
3.Nominal Voltage: 100-240V AC, 50/60Hz
4.Maximum Current: 1.58A
5.Optimal Operating Temperature:-40℃+50℃
6.Operating Humidity: 10% to 90%
7.Power Fact(PF): > 0.95
8.Driver Efficiency: > 90%
9.LED Luminous Flux: 14400 lm in Initial, 13200 lm in Maintain
10.LED Luminous Efficiency: Up to 110 lm/w
11. CRI: Ra >= 75
12. CCT: 3000-3500K, 5000-5500K, 4000-4500K, 6000-6500K
13. IP Rating: IP65
14.Lifetime: 50000 hours
15.Housing: Anodized Aluminum
16.Heat Radiator: Anodized Aluminum
17.Lens:PC
18.Guarantee: 3 years
19.Fixture Dimensions: 445 x395 x200 mm/17.5 x15.6 x7.9 inches
20.Fixture Weight: 11.7 kg /25.8 lbs
21.Packing Dimension: 495 x445 x220 mm/19.5 x17.5 x8.7 inches
22.Packing Weight: 14.5 kg /32.0 lbs
23.Aperture Diameter:Ф60 mm /Ф2.4 inches


Competitive Advantage:

1.High Quality and Brightness LED Light Source
2.Stable and Efficient LED Driver
3.Optimal Heat Sinking Performance
4.Superior Optical Design
5.Exclusive Appearance Design with Patents
6.Significant energy savings
7.Instant on/off
8.Maintenance free
9.Mercury free
10.Superior light quality
11.No UV
12.Simple installation
13.Wide input: 100 - 240V AC
14.Resistant to shock and vibration
15.Temperature compensation technology for long life
16.Copper free aluminum
17.Superior Vision-Care
