Home > Products > PVC Coated Stainless Steel Wire Rope > 3mm 304 PVC Coated Stainless Steel Wire Rope , 7x7 BS / ASTM / JIS

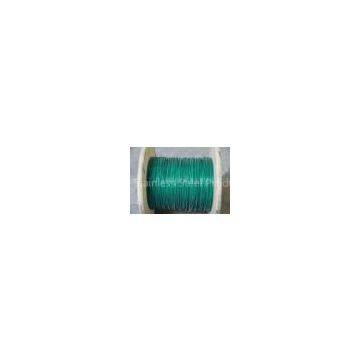

3mm 304 PVC Coated Stainless Steel Wire Rope , 7x7 BS / ASTM / JIS
- T/T L/C D/P D/A
- 7 days
You May Like
-
316 2.5 mm PVC Coated Stainless Steel Wire Rope , 7x7 for Gill Racks
-
ASTM 316 PVC Coated Stainless Steel Wire Rope , 1x7 and 2mm
-
DIN 304 PVC Coated Stainless Steel Wire Rope With Dia 4mm and 7x19
-
ASTM 316 PVC Coated Stainless Steel Wire Rope , 2mm 7x19 for Kitchen
-
304 1.5mm PVC Coated Stainless Steel Wire Rope , 1x12 for Metallurgy
-
304 6mm PVC Coated Stainless Steel Wire Rope , 6x19+FC for Crane
Product Details
| Brand Name | TianLi | Place of Origin | China | |
| Model Number | 304 |
Product Description
Certification:ISO
3mm 304 PVC Coated Stainless steel wire rope , 7x7 BS / ASTM / JIS
Quick Detail:
Grade: 304 stainless steel wire rope
Structure: 7*7S+Fc/7*7S+IWR/7*7W+ISR
Diameter: 1- 50mm
Standard: DIN, GB, EN12385-4, AISI, BS, ASTM, JIS etc
T/S: 1570MPA, 1670MPA, 1770MPA, 1870MPA, 1960MPA
Description:
Stainless steel wire rope:
1. Standard: DIN, GB, EN12385-4, AISI, BS, ASTM, JIS etc
2. Diameter: from 0.5 mm to 20mm
3. T/S: 1570MPA, 1670MPA, 1770MPA, 1870MPA, 1960MPA
4. Packing: Wooden box and bagging, or according to customers\' request.
5. Delivery date: 30days after the order confirmation.
6. We have ISO and SGS certificates
Stainless steel wire rope Mainly used for decoration, chemical metallurgy, petroleum machinery, port machinery, nuclear industry, the coal, metallurgy, chemicals, shipbuilding, bridges, electricity, rubber, military, tourism, water, light industry, aviation and aerospace industry.
Applications:
With bright surface, slight magnetism and no cracks on forming, is widely used in crane, bicycle fittings, kitchen and sanitation tools, goods shelf, pet cages, gill racks, decorative handles and baskets, food and medical machinery accesses, etc.
Specifications:
|
Diameter (mm) |
Min.Breaking Load (KN) |
Approx.Weight Kg/100m |
|
0.36 |
0.083 |
0.0531 |
|
0.45 |
0.140 |
0.0830 |
|
0.5 |
0.185 |
0.1025 |
|
0.6 |
0.215 |
0.1476 |
|
0.8 |
0.460 |
0.2624 |
|
1.0 |
0.637 |
0.0405 |
|
1.2 |
0.98 |
0.585 |
|
1.5 |
1.48 |
0.911 |
|
1.8 |
2.15 |
1.31 |
|
2.0 |
2.94 |
1.62 |
|
2.5 |
4.4 |
2.53 |
|
3.0 |
5.71 |
3.65 |
|
4.0 |
10.2 |
6.4 |
|
5 |
15.9 |
10 |
|
6 |
22.9 |
14.4 |
|
8 |
42.5 |
25.6 |
|
10 |
56.3 |
40 |
|
12 |
81.1 |
57.6 |
|
14 |
110 |
78.4 |
|
16 |
144 |
102.4 |
|
18 |
183 |
129.6 |
|
20 |
255 |
160 |
Competitive Advantage:
1,It features ultra-high corrosion resistance,
2,surface quality, high brightness, strong corrosion resistance,
3,tensile strength and fatigue strength.
4,In particular, 316, and high corrosion resistance,
5,31
