Home > Products > High Tensile Bead Wire > Carbon 1.83mm Bronze Coated High Tensile Bead Wire For Planes

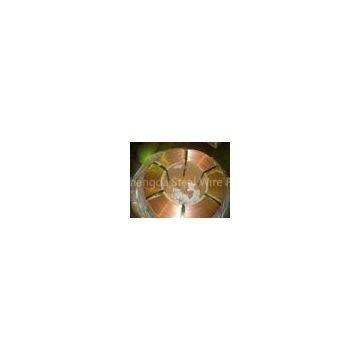

Carbon 1.83mm Bronze Coated High Tensile Bead Wire For Planes
- T/T L/C D/P D/A
- 7 days
You May Like
-
High Tensile Bead Wire , Bicycle Bronze Coated Bead Wire
-
Durable Steel Bead Wire For Bicycle Tire
-
0.8mm Bronze Coated Bead Wire
-
Durable 2.3mm Automobiles High Tensile Bead Wire , 28-31(360/100d) Torsion
-
2060mpa High Tensile Brozne Coated Bead Wire 1.65mm , 85.4-87.6% Yield Ratio
-
1.8mm High Tensile Bead Wire For Vehicles Tire Bead Wire , Bronze Coate Bead Wire
Product Details
| Brand Name | Shengda | Place of Origin | China | |
Product Description
Certification:ISO9001
Elongation at break (6.0%)
Automatic computer control system
specialization product line
Descrition:
Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.
Specifications:
|
Description |
BEAD WIRE |
Reference |
GB/T14450- 2008 |
Diameter |
Φ 1.83mmHT |
|
Item |
Standard |
Result |
|||
|
Diameter(mm) |
1.83± 0.02 |
1.81-1.85 |
|||
|
Breaking force (Mpa) |
≥2050 |
2050-2200 |
|||
|
Elongation at break(%) |
≥5.0 |
5.0-6.0 |
|||
|
Yield ratio(%) |
≥85 |
85.4-87.6 |
|||
|
Torsion(360°/100d) |
≥25 |
29-35 |
|||
|
Bronze coated(g/kg) |
0.20-0.40 |
0.32-0.36 |
|||
|
Sn (%) |
0.3-3.0 |
1.7 |
|||
|
Cu(%) |
≥97 |
98.3 |
|||
|
Surface Quality |
Coating Smooth and uniform |
conform |
