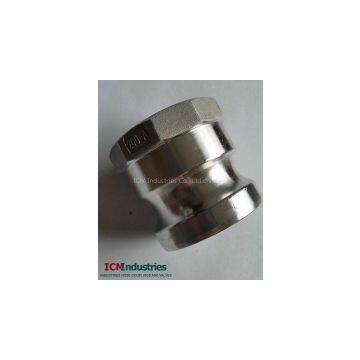

Aluminum Camlock Fittings Type A

Introduction: Aluminum camlockfittings type A style, is one end is male CAM adaptor, the other end is femalethread. Type A is Male adaptor, it can contact with all the styles which havecoupler end. Such as type B, C, D, DC. The other can contact with hose endthrough BSP, NPT, PT thread.

ICM Aluminum camlock  (cam &groove) coupling type A specification:

a. Standard: AA59326 (MIL-27487); DIN2828

b. Types: A (Male Adaptor x female thread),can contact with: type B, C, D, DC, FLC, DD,

c. Sizes: 1/2-8”

d. Casting Way: Gravity casting with T6treatment and Die casting

e. Material:

Body: ASTM A356 Aluminum alloy for Gravity casting; ASTM A380 Aluminumalloy for die casting

Gasket: Buna-N (NBR) is standard, EPDM, PTFE, VITION and Silicon is available.(DIN2828 standard type A must assemble gasket for sealing)

f. Thread: BSP, NPT, ISO228, ISO7/1,DIN2999, G,PT

g. Working Pressure: 1/2”-2”:250psi, 2-1/2”-4”:150psi,5”-6”: 75psi, 8”:50psi

 3)   ICM Aluminum quick disconnect fittingsFeatures:

a.     Lightweight and abrasion assistance--Save manpower, save cost and safety

b.     Economicaland Dural- Save cost, improve customer satisfaction

c.      Anti-corrosion,so suitable for chemical & petroleum delivery--More Useful, more popular

d.     Convenient to connect or disconnect by hand--Save time and save manpower

e.     Safetysealing for multi-medias:  water, powder,pellets, hydraulic oil, coolants, gasoline & petroleum products--MoreUseful, more competitive

4)     ICMAL Cam Lock Hose Adapters and Fittings Application area:

AL Cam & Groove Hose Fittings are usedin agricultural irrigation, water transfer of construction and industries, andchemical & petroleum delivery, also in textiles, mining, brewing, inks,dyes, paper mills, fertilizers, and so on.

5)     ICMAluminum Acoplamientos camlock usage NOTE:

f.      Notbe used in compress air and stream

g.     Beforeyou assemble cam lock couplings, check the real working environment formaximizing of the function of the coupling

h.     Choosethe right gasket material for the suitable media
