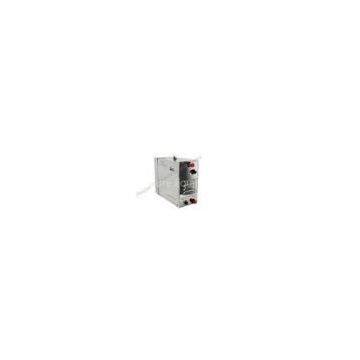

5kw Eletronic Commercial Steam Generators Cuboid 220v - 230v for 4 - 6m

Delivery Time:1-3 workdays
Certification:CE

Mirror-polished stainless steel KSA-S50 steam generators 5.0kw/220v-230v / 50~60Hz with pressure relief valve for steam bath

Quick Detail:

Type: Wet Steam Sauna control panel: touch screen digital and optional Power output: 5.0kw voltage: 220~240V/380~400V phase: 1/3 Current: 22.7A/9.1A Main Material: stainless steel tank and Mirror-polished stainless steel shell Color: stainless steel Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others Auto function: auto water inlet , auto drain, auto flushing, auto power off Shape: Cuboid Size: 405x150x280mm Room volume(cubic meter):4~6 Usage: steam sauna room working time: 1~60 minutes or long time Heating: heat elements Power source: Electric Time Setting: 1-60mins Temperature range to control: 95 F degree~131 F degree Temperature range to show on control panel: 43 F degree ~140 F degree

Pressure relief valve on KSA-S steam generators with luxurious mirror-polished stainless steel shell is for water tank’s pressure relief to keep safety.

KSA-S steam generators have middle size to install easily.

They have 304 stainless steel water tanks, 304 stainless steel heating element with high quality Teflon to prevent water scale.

The KSA Elegance touch screen control kit has 6 bottoms to set working stages. Working time 1-60mins can be adjusted or long , the setting temperature of the steam will be in 6-60C degrees and can be adjusted between 35-55C degree (95-131F degree).KSA-S steam generators feature an advanced electronic control with fault diagnostics having different code to show each operation of the generators. Safety features include boil dry protection, thermal overload safety cut out and pressure relief valve.

5kw Cuboid Sauna Steam Generator 220v - 230v for residential and commercial

Description:

The KSA-S steam generator is with new electronic touch screen control kit and new mirror-polished stainless steel 304# steam head. Full body made of stainless steel, durable and luxurious.

1. It is intelligent to heat by 3 groups of heating elements, they alternates on and off to gently maintain the temperature without large fluctuation. This will help the steam fast response after steam generator power on.

From cold all 3 groups operate for maximum power and rapid heating, when the steam room temperature is almost reached, then group 1 stop, when the required temperature is achieved, then group 2 stop. The group 3 alternates on and off to gently maintain the temperature without large fluctuations improving user comfort.

2. KSA-S steam generators have an auto drain down with the 8kg power drain valve. At the end of each steaming session the drain valve will open and after a short time the cold water inlet valve will open to give a period of continuous flushing and draining. Flushing and draining the boiler reduces the build up of damaging limescale, cooling the elements before the final drainage helps prolong their useful life.

3. KSA-S is with new touch screen electronic control kit. The elegance series control kit is easy to operate. Shine model style with white LED lights. It is intelligent to protect when overheating, to protect when shortage of water and when over pressure of inside of water tank.

4. Imagine being able to shut the door on the world for a few minutes every day. Billows of warm, gentle steam wash over you, relaxing muscles, opening pores, inducing a skin-healthy perspiration. The origins of the steam bath come from the Roman bath, which began during the height of the Roman Empire.

Applications:

For 4~6m³ residential and commercial steam baths

A daily steam bath is a remarkable way to indulge yourself. It causes the perspiration that is the single healthiest thing you can do for your skin. Stress and negativity quickly dissipate in the soft clouds of intense yet comforting heat.

A few minutes of steam daily, in the comfort of your own home, is an opportunity to improve your overall well-being in every way.

Technology data for your reference:

Model

Power KW

Room volume (m³)

Power requirements           50/60Hz

Current (A)

Power        wire (Copper)          N*mm2

Dimensions  CM

Packing dimensions CM

Gross
