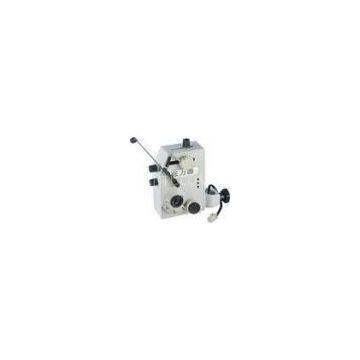

Solid Electronic Wire Tensioner For Coil Winding Machine METM

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

KIMCHEN

Place of Origin

China

Product Description

Delivery Time:3 to 5 working days
Design:Compact and Solid Power: DC24V Coil Winding Tensioner Electronic Tensioner RM Series electronic tension device

Solid Electronic Wire Tensioner For Coil Winding Machine METM

Place of Origin:	Dong Guan China
Brand Name:	KIMCHEN
Model:	MET Series
Feature:	Control System are packed within the body
Design:	Compact and Solid
Tension test condition:	Wire speeding 5m/s refer roundness Bobbin
Power:	DC24V
Electric Current:	1.2A
Product Size:	140mm140mm45mm
Weight:	0.56KG

Detailed Product Description:

MET Series Electronic Tensioner is by integrating the electronic system and non-contact breaking design, there is barely any contact in the core mechanism of the main tension, wheel, except the connecting bearing .This combination provide smooth, stable and consistence tension, even in high speed winding. The non contact designs also reduce wear and tear of most of the critical components as to cut down maintenance cost. All MET comes with “ Auto Tension Fine Tuning System”. By sensing the movement of the tension arm, the control system will fine tuning the tension automatically.
Control system are packed within the body.

MET Series is solid and compact in design. It operates with DC24V electronic power.
MET Series also comes with wire jump prevention and wire breakage detection.

MET Electronic Tensioner

Specifications

Model	Tension Range (g)	Applied wire diamiter(mm)
METSS	3　－　15	φ0.02－φ0.04
METS	5　－　60	φ0.03－φ0.09
METM	50　－　240	φ0.08－φ0.20
