Wide Gamut P12 Led Display

Delivery Time:30days
Certification:CE,Rohs

Wide Gamut P12 Led Display

Quick Detail:

Cabinet resolution : 80*80 Module size(MM) : 192*192 Cabinet pixel : 6400 BVO-12 outdoor full color LED display/LED screen is suitable for commercial and advertising display with advantages of less power consumption, high brightness, High resolution, and long lifetime.

Description:

BVO series ultra low power outdoor LED display or LED screen are new products with XIWAN new technology. Xiwan have invested millions of dollars on this new technology. Dedicate to save energy cost for big LED display and improve image quality very effectively. We have now developed P10, P12, P16, P20 and P25, you can choose according to your own applications.

Qualified LED core from Epistars, Silan and other big brand.

Qualified LED driving from Meanwell

Applications:

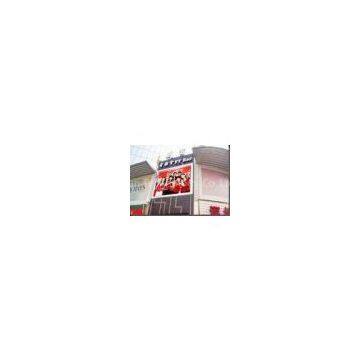

Advertising media, sports stadiums, airport station, business establishments, and public square

Specifications:

Item No.	BVO-P12
Pixel Pitch(MM)	P12
Module resolution	16*16
Module size(MM)	192*192
Pixel combination	DIP 1R1G1B1W
Pixel density	6944 pixels/㎡
Driving way	1/4 Scanning
Cabinet size(MM)	960*960
Cabinet resolution	80*80
Cabinet pixel	6400
The number of modules	25
Cabinet type	Fixed installation water proof iron box
Cabinet weight (Kg)	55
Average Power Consumption (W/㎡)	≤160W/㎡
The maximum power(W/㎡)	≤320W/㎡
Brightness (Cd/㎡)	9500
Gray scale	16bit(4096 levels)
Refresh rate	≥800
Brightness adjustment	256 levels
Frame frequency	60HZ
Input voltage	110~220VAC
Working temperature	-20℃~+50℃
Work humidity	10%-90%RH
Best stadia	≥12m
The whole screen perspective	H:135°;V:55°
IP rating	Front:IP65;Back:IP54
MTBF(hrs)	1000
Life span(hrs)	100000

Competitive Advantage:

5 advantages of XIWAN BVO series of low power consumption product:

●50% energy savings

Up to 50% reduction in energy consumption, in special circumstances, even more than 70%, it reduced the use-cost greatly.

Take BVO-20 LED display as example, compared with ordinary products, a 100m2 screen works 24 hours per day, 365 days per year, it can save energy =(160W×100m2×24h×365)/1000 =140,160KW (KWH), reducing greenhouse gas emissions 106,241kg

●30% higher brightness

Increased 30% max brightness, more than 12,000cd of the brightness could provide the best visual effect under the direct sunlight.

●30% longer service life
