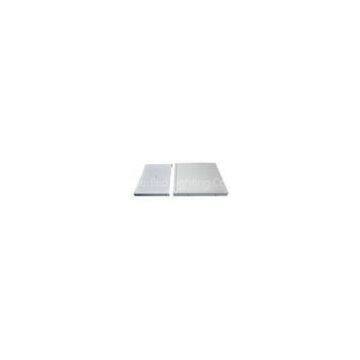

Super Slim Surface Mounted LED Panel 300 x 300 mm 25W Warm White

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	GOODLED		Place of Origin	China
Model Number	GLPL-SC-L33-W25

Product Description

Delivery Time:sample within 3 days,big order between 10-20 days
Certification:TUV-GS，CE ，SAA

Super Slim Surface Mounted LED Panel 300 x 300 mm 25W Warm White

Quick Details:

1.Dimension:296X296X12 mm

2.Viewing Angle:120 Degree

3.Green and eco-friendly without mercury

4.Warranty:3years life:50000hrs

Description:

The ultrathin LED panel light is made of PMMA light guide plate(LGP), low voltage constant current driver(SELV) and aluminium alloy for excellent heat dissipation. This design and materials make the panel lighting soft and uniformity, the surface looks concise and elegant, energy-saving, environment and safety, easy to install ,no maintenance and so on.

The 40w LED panel light can replace 100W incandescent

The LED panel light have three kinds of method of installation:

embedded install method (build-in type),

suspended install method(sling type),

surface mounted( Suction upper frame type)

Applications:

A widely application for illuminated and decoratied in commercial and home usesuch as home, office,

meeting rooms, library, hotels, restaurants ,hospital, school etc.

Specifications:

Product Specification
Product name	25W LED PANEL LIGHT
Part NO	GLPL-SC-L33-W25
Light Type	Panel light
Dimension	296X296X12 mm
Lighting size	246mmX246mm
Technical Characteristic
Color	warm white /natural white/cool white
Color temperature	2700-3500K/3700-4500K/5500-7000K
CRI	70-80
Lumen	1600LM/1800LM/800LM
Illuminance@1m	380lux/430lux/430lux
Lumen Efficacy	67 lm/w/ 75 lm/w/ 75 lm/w
Input Power	25W
Viewing Angle	120 Degree
Dimmable Type	DALI,PWM , 0-10V ,TRIAC,RF REMOTE CONTROL,
Input Voltage	90-264VAC
Frequency Range	47-63 HZ
PFC	＞90%
Life Span	50000 Hours
Equivalent	200W incandescent / 50W CFL
Waterproof Rating	IP20
Materials
LED Brand	EPISTAR
LED Type	3014 SMD LED
LED QTY	108 pcs
Housing	Aluminum
Housing Color	Sliver / White
Lens	PMMA
Others
Operating Temperature	-20℃ TO 45 ℃
Operating Humidity	20%-90% RH
Storage Temperature	-30℃ TO 80 ℃
Storage Humidity	10%-95% RH
