Specifications
Non-intrusive design audio-visual easy adjust
Measurement of position & torque reliable

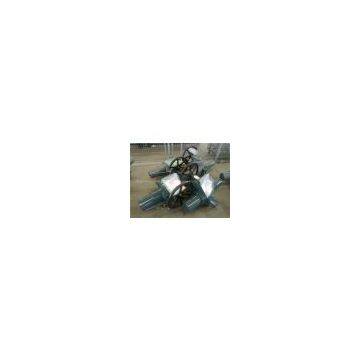

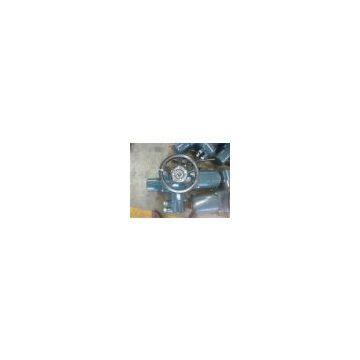

1.GENERAL
SND-Z non-intrusive intellectualized electric actuators are designed with introduced technology from overseas and developed by cooperation. These mechanic-electronic products have been integrated advanced multi-control technologies such as absolute coding technology, sensor technology, bus-mastering technology, infrared remote control technology, LED, magnetic control switch and advanced manufacturing technology.
SND Range products are units to control the operation of final control element (e.g. valves) in open control system. Among the rest, SND actuators of Range Z are used for the control of globe valve, gate valve, throttle valve, water gate and etc. And SND actuators of Range Q and DQ are used for the control of ball valve, butterfly valve, and damper etc.
2. MAIN TECHNICAL PARAMETERS
1) Power supply: 380 V±10%, 50 Hz±1%
Optional: 380~660 V,50 or 60 Hz, specified when ordering
2) Service environment
(1) Environmental temperature: -20~60°C; Optional: -40~ +70°C
(2) Relative humidity: ≤90% (+25°C)
(3) Enclosure protection: IP68 (4 meter below water surface for 68 hours)
(4) Flameproof specification: Exd Ι, ExdibIIBT4 and ExdibIICT4. The ExdibIICT4 is for special order.
(5) Flameproof mark: Exd Ι, ExdibIIBT4 and ExdibIICT4, for hazardous zone with Class IIB ~IIC explosive gases of temperature groups T1~T4.
3) The motor is of short time duty. Rated operating time is 15 min.
Insulation: Class F
3.FEATURES OF ACTUATORS
Non-intrusive design is audio-visual and easy to adjust.
Measurement of position and torque is accurate and reliable.
Provided with speed-changeable and slow closing functions
Comprehensive data recording
Self-diagnostic and self-adapting functions
Automatic phase-rotation-corrective function
Trouble-diagnostic function in operation
Functions of network transmission
Overheat-protection for electric motor
Transient reverse protection
Capable to carry out valve closing at high speed
Capable to compensate valve seating at high temperature
Enclosure protection of IP68 (4 meter below water surface for 68 hours)
Provided with two series products of normal model and flame-proof model
Small in size, light in weight and extensive in speed range
