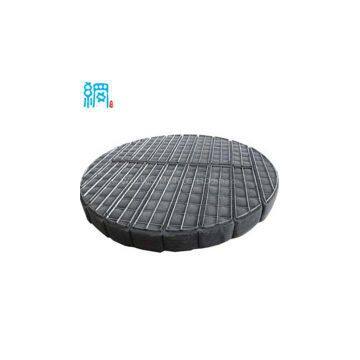

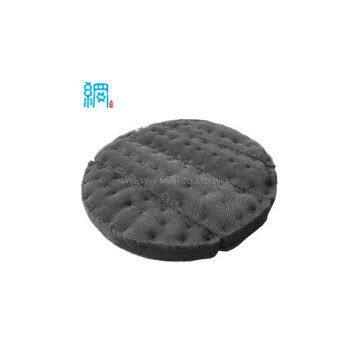

Demister pads is an assembly of knitted mesh supported and held down by high open area grids. When vapor and entrained liquid droplets pass through a demister , the vapor moves freely through the mesh pad but the liquid droplets, due to their greater inertia, cannot make the necessary sharp turns and as a result are thrown into contact with the wire surfaces and briefly held there. As more droplets enter the pad and collect on the wires, they grow in size, run down the wire to the bottom surface of the mesh separator and fall from the unit. Overhead vapor is now free of entrained liquid.
Material
generally of stainless steel, copper, nickel, PP etc. We also produce special material according to the customer request.
Characteristics
1)High removal efficiency
2)Easily installed in existing vessels
3)Light weight, low pressure drop
4)No maintenance required, easy to clean
Application
Widely used in petrochemical,evaporators, phosphate, scrubber, steam drums etc.
Technical parameter
Diameter: DN300-5200mm
Mesh thickness:100mm and 150mm
Packing packed in wooden pallet or wooden box.
