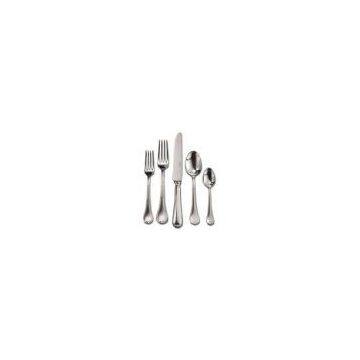

Help CenterDishware PVD Magnetron Sputtering Vacuum Coating Machine
Related Products
-
Cutters and Tools PVD Vacuum Coating EquipmentUS$ 50000 - 50000MOQ: 1 Piece -
Ceramic Tiles Coating EquipmentsUS$ 70000 - 70000MOQ: 1 Set
-
Metals Gold Coating MachineUS$ 70000 - 70000MOQ: 1 Piece
-
Vacuum Heat Treatment SystemUS$ 70000 - 70000MOQ: 1 Set
-
Aluminium Vacuum Coating MachineUS$ 70000 - 70000MOQ: 1 Set
Ms Laurie Skype:Laurie 7816
Tel:86-13465501220 QQ/Wechat:554617049
E-mail:lkbt@bite-china.com
Web:/
1 sputtering coating machine(ZZ-) adopts the resistance heating in the vacuum chamber, to melt and vaporize the metal wire (aluminum wire) cling to the resistance wire.
2 The vaporized metal molecule deposit on the substrates, to gain the smooth film as well as high reflectivity. Thus the surface of the items can be decorated and beautified.
3 Characteristic: reasonable structure, even film, good-quality film forming, quick pumping speed, the cycle of short, high efficiency and easy operation, low energy consumption and performance advantages of stability.
4 Coating color: gold, silver, red, blue, green, purple, multi color, and so on
Technical parameter:
|
Mode Dimension |
LH-800 |
LH-1100 |
LH-1250 |
LH-1600 |
LH-1800 |
|
800*1000mm |
1100*1000mm |
1250*1500mm |
1600*1800mm |
1800*1800mm |
|
|
Maily application |
Metal decorative coating and Ceramic decorative coating |
||||
|
Coating mode and main confirguration |
Eight multi-arc targets |
Ten multi-arc targets |
Twelve multi-arc targets |
Twenty multi-arc targets |
Twenty two multi-arc targets |
|
Power source |
Electric-arc power, Filament power, |
||||
|
Process gas control |
Mass flowmeter + Electromagnetic ceramic valve |
||||
|
Vacuum chamber structure |
Vertical side opening door, pump system postposition, double water cooling |
||||
|
Vacuum system |
Molecule pump +Roots pump +Mechanical pump(8.0*10-5Pa) Diffusion pump +Roots pump +Mechanical pump(8.0*10-4Pa) |
||||
|
Workpiece baking temperature |
Normal temperature to 350 centi-degree PID control, radiation heating. |
||||
|
Workpiece motion mode |
Public rotation Frequency control: 0-20 rotation per minute |
||||
|
Measure mode |
Number display composite vacuum gauge: from atmosphere to 1.0*10-5Pa |
||||
|
Control mode |
Manual/Automatic/PC/PLC + HMI/PC four choice of control mode |
||||
|
Remark |
We can design the dimension of the equipment according to customers special technique requirement. |
