polyester air slide conveyor
- 200 Meter / Meters per Month
- Xingang Tianjin New Port / Shanghai
- T/T
Product Details
| Standard or Nonstandard: | Standard | Type: | Flat Belt | Material: | Other, Polyester |
| Place of Origin: | Tianjin, China | Brand Name: | Shengquan | Model Number: | AP4 AC4 |
Product Description
Air slide conveyor for cement
Intoduction
Air Slide Fabrics produced from 100% Polyester (spun/filament), 100% cotton, 100% Nomex® in widths of 200mm up to 2000mm and thickness in 3.0, 4.0/4.5, 4.8 /5.0, 6.0/6.5/8.0/10/12mm.
Available in roll lengths and cut pieces to actual installation size & shape.
Materials inspected & tested with Test & Guarantee Certificates provided.
Air Slide Fabrics for all Pneumatic gravity Conveyor System i.e. Air Slide, Fluidor, Fluxo- Channel Fluid Slide, Aeration – Box, Airlift or Aerpole pumps in Sillo, Bin & Hopper.
For bulk material conveying fine crushed and ground powdered chemical mineral substances used to manufacture cement as well as any other similar powdered products
Our “Air Slide Fabrics” have good abrasion resistance offered in 100% Synthetic qualities of polyester to withstand organic and inorganic chemicals, acids, alkalis and oxidizing agents contained in raw mix, clinker and cement.

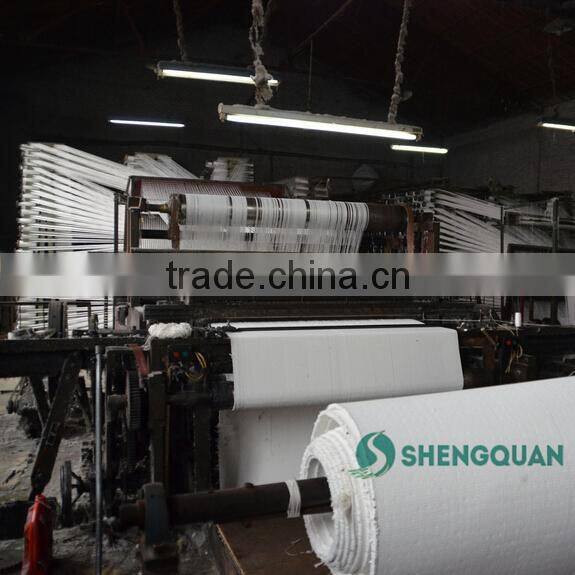

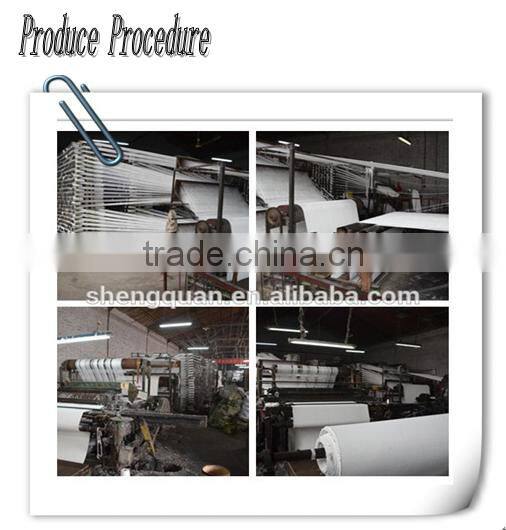

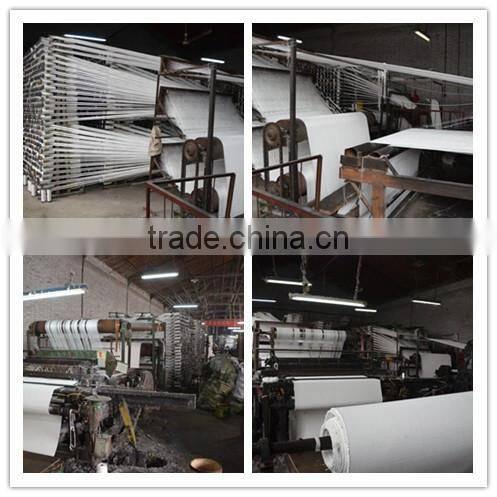

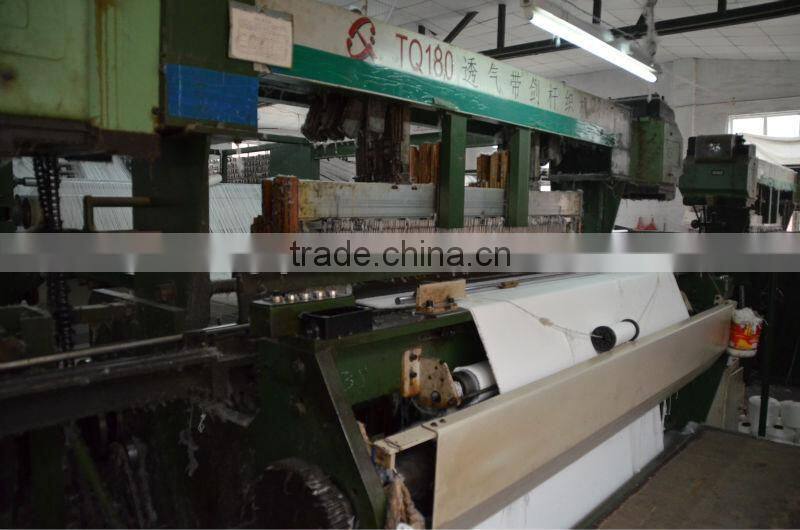

Factory production process
Specification
Type | Material | Ply | Tensile Strength | Heat Resistance Deg.C | Thickness (+0.5,-0.3mm) | Weight/m2 | Max width | Air resistance in 2m3 /m2 /min H2O mm | |
Warp >N/mm | Weft >N/mm | ||||||||
AP4-4 | 100%polyester | 4 | 360 | 270 | 150 | 4 | 3200g | 2000mm | TypeA:80-120 TypeB:120-150 TypeC:150-200 |
AP4-5 | 100%polyester | 4 | 360 | 270 | 150 | 5 | 3600g | 2000mm | TypeA:80-120 TypeB:120-150 TypeC:150-200 |
AP4-6 | 100%polyester | 4 | 360 | 270 | 150 | 6 | 4000g | 2000mm | TypeA:80-120 TypeB:120-150 TypeC:150-200 |
AP4-7 | 100%polyester | 4 | 360 | 270 | 150 | 7 | 4400g | 2000mm | TypeA:80-120 TypeB:120-150 TypeC:150-200 |
AP4-8 | 100%polyester | 4 | 360 | 270 | 150 | 8 | 4800g | 2000mm | TypeA:80-120 TypeB:120-150 TypeC:150-200 |
AC4-5 | 100%cotton | 4 | 150 | 100 | 130 | 5 | 3800g | 1000mm | TypeA:80-120 TypeB:120-150 TypeC:150-200 |
