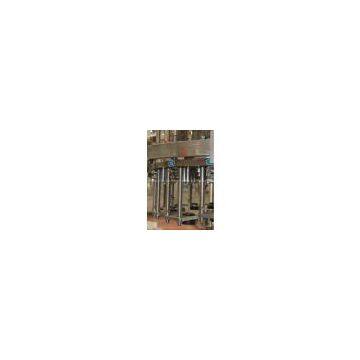

Beer keg washing and filling unity machine

Features:

1. The process of washing, sterilizing, filling is finished automatically.

2. Filling volume is controlled by high-speed positioning filling skill system

3. The temperature of hot water and lye is controlled automatically.

4. Available to connect more than one machine together to reduce the investment.

5. Auto washing of the beer pipeline CIP

6. Figure statistics and display function

7. Check keg spear automatically, make sure the washing quality and filling volume.

8. Suitable for different beer keg sizes.

Working Procedures

Location—scavenge wine remains—mixed hot mater washing—blow  -- sterilize by lye—recycle—hot water washing—recycle—sterilize by steam—sterile water washing—recycle—Preparation of CO2 pressure --filling

Equipment fittings:

Siemens LOGO PLC

Stainless steal control crow valve

Pneumatical component of Taiwan Yadake

Main Parameter

Filling accuracy: 5‰

Capacity: 30-40bottles/hour

Compressed air: pressure>0.4Mpa

Wince resource pressure: 0.25~0.4Mpa

Power: AC220V

Voltage: DC24V

Equipment size: 900mm x1530mm x1950mm
