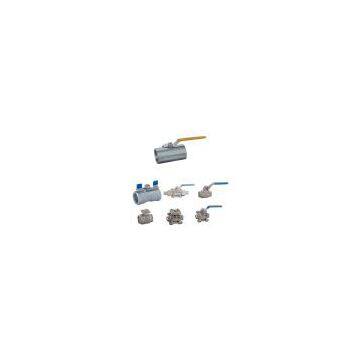

Stainless Steel Sanitary 2pc Ball Valve

Application

This series is a kind of manually operated butterfly-type ball valve. With good capacity in dealing with viscous medium or particulate, it is widely used in food, beverage, pharmaceutical and chemical industrial piping system, especially the brewing industry, to regulate and control the medium flow.

Materials

Product wetted parts: AISI 316L / 304
Gasket: EPDM (default)
Seat: PTFE

Options

End connections: sanitary clamp, butt-welded, threaded, flange, I-line or others upon request.

Seats and gasket can be NBR(Nitrile), VMQ(Silicon), Viton (FPM), all complying with FDA 21CFR177.2600

Handle: 3-position pull handle, multi-position handle in either pure stainless steel or with plastic cover.

Actuator: pneumatic stainless steel actuator, pneumatic aluminum actuator, electric actuator

Intelligent C-top control: AS-I connection, electronic connection.

Design Features

·                                 Free of maintenance

·                                 Portable and compact

·                                 Small torque

·                                 Drainable

·                                 Seats and gaskets comply with FDA 21CFR177.2600

Technical Specification

·                                 Sizes available from DN15-1/2" to DN100-4"

·                                 Max. pressure: 10bar (147psi)

·                                 Temperature range: 14 ~ 248°F (-10 ~ 120°C), EPDM

·                                 End connections: sanitary clamp, butt-welded, threaded, flange, I-line or others upon request

·                                 Inside polish: Ra 32µin (0.8µm); Outside polish: CNC machining

·                                 Supply pressure for air actuator: 70 ~ 115psi
