Help CenterDC5V APS Used for Electrical Cars
Related Products

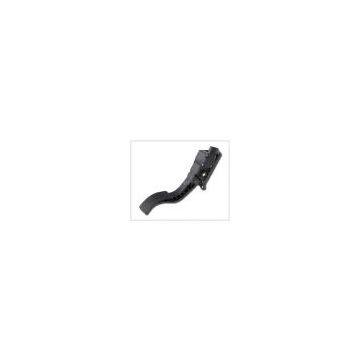

APS specify an E-gas pedal, who is simulation traditional gas pedal's working and sending electrical signal to ECU.
Technical Specifications
1. Fullfill the standard of FMVSS124,SAEJ1843
2. Ambeint Conditions:
2.1 Operating temperature:-40 DEG to 85DEG
2.2 Operating humidity:equal or below 95%
2.3 Storage temperature:-40 DEG to 85DEG
2.4 Test temperature:23DEG plus or minus 5 DEG
3. Contacless Sensor is used
4. Electrocircuit:
4.1 Voltage supply:DC5Vplus or minus 0.3V
4.2 Operating electrical current:20mA(Max)
4.3 signal output: 15%±1%～76.8%±2%
7.5%±2%～38.4%±2%
4.4 Signal Test load:10KΩ C=4.7nF
4.5 Sensor linearity: under 2%
APS synchronicity:under0.5%
4.6 Reverse polarity Voltage Protection:protect
5. Electrocircuit connection
5.1 Matching Connector type;AMP 936394-2
6. Mechanical Requirement:
6.1Starting force:20plus or minus 6N,Ending force 35 plus or minus6N,
Resilience more than 8N
6.3 Fatigue Test: Can endure 10million of full working
stroke cycles (100 times/min)
Used in agricultural equipment, truck, passenger car, off-highway vehicles, construction equipment and marine applications, applied to the following engines:
Yuchai Engine
Weichai Engine
Dalian engine
Hangzhou engine
Yunnei engine
Shanghai engine
Bosch company
If you are interested in our product, please contact me.
