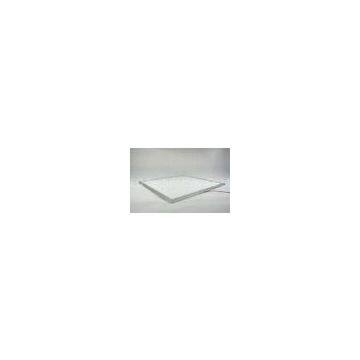

27W 2000lm 600 * 600mm 50 - 60Hz SMD3014 Mitsubishi LED Panel Light With PMMA Cover

27W 2000lm 600 * 600mm 50 - 60Hz SMD3014 Mitsubishi LED Panel Light With PMMA Cover

Description:

LED Panel Light 600*600mm

Part No	CCT	Beam Angle	Power	Luminous
P6-A027-111	3000±200K	120°	27W	1800lm
P6-A027-131	4000±200K	120°	27W	2000lm
P6-A027-181	6500±200K	120°	27W	2300lm

Features:

•  Input Voltage: AC110-270V/50-60Hz

•  Power Factor: >0.95

•  CRI: >75

•  Operating Temperature: -40℃~80℃

•  Life: 50,000 hours (Ta=20℃)

•  Materials: Aluminum frame and PMMA Cover

•  LED Type: SMD3014

•  Size: 598*598*12mm

•  Net Wight: 4.5kg

•  UV and IR free

•  Excellent cooling system

•  Energy-Saving

Applications:

•  Home Lighting

•  Mall Lighting

•  Hotel Lighting

•  Office

Aperture Illumination:

Spectral Distribution Graph:

Test Report(LM-80):

Installation Diagram:

Installation Fixture:

Package Information:

Outer Carton:690*655*140mm

Inner Box:657*637*40mm

Weight/BOX:5.2KG

Quantity:3pcs/CTN

Weight/CARTON:17.6KG

Safety Notice for Using:

.Please always use the light out of its package.

.Before starting use of the light ,please check if the light was damaged during transportation.if any damage shown,please DO not install or use it.

.Any maintenance should be performed by trained professionals only.

.Keep packaging material away from the rech of children and pets.Risk of suffocation!

.Caution.The packaging contains small parts that may be swallowed by children.

.Never leave childree unattended in the vicinity of the lights and do not allow them to play with electrical devices.

.Try to avoid looking directly in the LED beam-especially for extended periods of time.Do not shine the LED light in another person’s eyes.

.Never cover the lights by other objects.

.Never allow the light to come into contact with open flames or external heat sources.

.The products need to re-repair inspection or special treatment of retirement after service time.

Maintenance:

.Prior to cleaning the light,make sure it has been disconnected form the power supply.

.Use a dry or slightly moistened cloth for cleaning.

.Never use any chemicals or abrasives for cleaning.

Disposal:

.Used electronic devices must be collected for recycling and cannot be deposited together with daily garbage.

Installation:

.This product should be installed by trained electricians.

.Check integrality of the products when unpack the packing.

.The distance between the  light and  any flammable materials must not be less than 0.2m.The distance between the upper part of the  installed light and the ceiling must not be less than 2cm.The light must not be installed into ceilings or walls that contain heat-insulating material.

.The main cable must not connect with the low volage cable or the surface-mounted lights.

.Guide the  lights’ connecting cables through the drilled-out hole,and fix the surface-mounted lights with the pre-fitted clips.Make sure that these are securelyconnected to the base material.

.When laying the cables,make sure that the cables and plugs are not subjected to

any tensile or twisting forces.Fit the cable tension relieving mechanisms to the

connection points of the surface-mounted lights .Do not kink cables.Output

cables should be laid separately and at adistance from other cables.

.After installation,connect the transformet to the mains s
