Home > Industrial Equipment & Components > Welding & Soldering Supplies > Welding Flux > 21mpa 17.2KW High Speed Oil Tandem Variable Piston Pumps With Low Noise

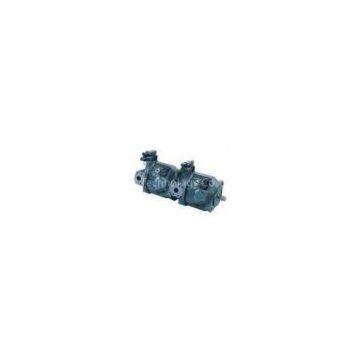

21mpa 17.2KW High Speed Oil Tandem Variable Piston Pumps With Low Noise

Name: 21mpa 17.2KW High Speed Oil Tandem Variable Piston Pumps With Low Noise
Brand: TKEN
SKU: 148031360
Availability: InStock

Wuxi TKEN Technology Co.,Ltd

21mpa 17.2KW High Speed Oil Tandem Variable Piston Pumps With Low Noise thumbnail-1

21mpa 17.2KW High Speed Oil Tandem Variable Piston Pumps With Low Noise photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

TKEN

Place of Origin:

China

Model Number:

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name TKEN

Place of Origin China

Delivery Time:5-15 working days

Quick Details

Theory:	Rotary Pump	Structure:	Piston Pump	Usage:	Oil
Power:	Hydraulic	Standard or Nonstandard:	Standard	Fuel:	Other
Pressure:	High Pressure	Application:	Metering	Max. Displacement:	69.8ml/r
Rated Pressure:	21mpa	Max.Pressure:	35mpa	Max Speed:	3200r/min
output Power:	17.2KW	Flow at Max. Speed:	223.4L/min	Charge Pump Displacement:	18.0ml/r
Net Weight:	61kg	Color:	gray	Package:	wooden case

Specifications

Tandem Variable Piston Pumps for Harvesters Manufacturers PV22
1.warranty:1 year
ure:35mpa
3.package:wooden case

Tandem Variable Piston Pumps for Harvesters Manufacturers PV22

Application Range:

This product is Sauer 20 series hydraulic transmission system introduced form American Sauer company. It is closed hydraulic system made up of axial hydraulic pump and motor. The pump is variable pump with charge pump and the motor is fixed-displacement or variable-displacement motor with valve assy. The control way of changing displacement includes MDC, HDC and EDC which can efficiently control the discharge, direction and power of the output oil. The hydraulic transmission system made up of this series of pump and motor has features of wide work range, reliable working state, easy operation and can be widely used on the hydraulic apparatus of engineering machine, agricultural machine, mine machine, aviation and transport machine.

Technical Parameters

Model	Max. Displacement(ml/r)	Torque at 10Mpa(N.m)	Out power(at 10Mpa 1500r/min)(kw)	Charge Pump Displacement(ml/r)	Max. Speed(r/min)
21	51.6	84.1	12.7	12.3 18.0	3000
22	69.8	114.2	17.2
23	89.0	144.3	21.9	2800
