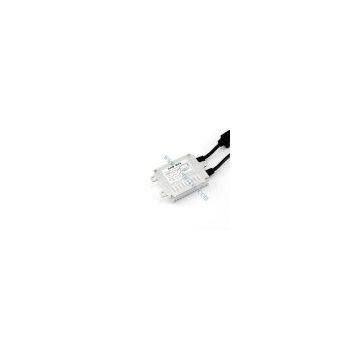

TSB05 35W Ultra Slim Hylux Can-Bus HID Ballast

Parameter Technical:

Rated input voltage: DC12.4V (9-16V DC); DC12.4V (9-32V)

Input start-up current: 3.5~4.5A

Stable input current: 3.5A±0.1A (DC 12.4V)

Input low voltage protection: >16V, <8.5V (9-16V); >32V, <9V (9-32V)

Input high voltage protection: >16V, <8.5V (9-16V); >29V, <9V (9-32V)

Rated output power: 34.5± 0.5W (9-16V); 35W ± 0.5W (9-32V)

Output frequency: 420± 20Hz (9-16V); 400 ± 50Hz (9-32V)

Rated output voltage: 68V ~ 160V above (9-16V); 68V ~ 130V above (9-32V)

Instant start-up voltage: <23 KV AC

Output open short protection:

Automatically stop working within 0.15S while open short circuited (9-16V)

Automatically stop working within 0.15S while open short circuited (9-32V)

Output open circuit protection:

Automatically stop working within 1S while open circuited (9-16V)

Automatically stop working within 2S while open circuited (9-32V)

Rated working efficiency: ≥89%

Warning Canceller built-in (9-16V)

Non-stop start up: Normal working

Life-span: ≥ 3000hours

Standard work temperature: -40℃~+85℃

Water-proof, anti-vibration and salt-fog test: Normal working

Size:90x67x15mm

Weigh: 0.35KG
