Certification:TUV CQC

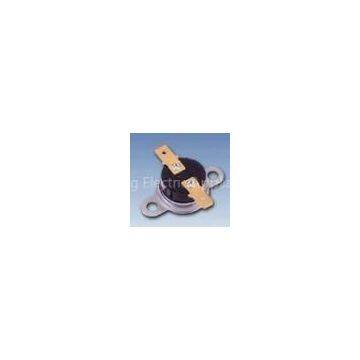

16A 125V,10A 250V 110℃ AC rice cooker temperature controller With TUV and CCC certificate
Description:
These snap-action devices, with Quick Make/Quick Break action, automatically reset at preset temperature. An electrically isolated bimetal disc is used to either open or close the circuit current.
Applications:
Automatic drop coffee machine Water heater Toaster furnace Dish washer Boiler Cooker Drier Electric heating appliance Washing machines Office suppliesSpecification
|
Rated voltage and current |
16A/125VAC,10A/250VAC 50HZ/60HZ |
|
Cycles life |
100, 000 cycles |
|
Terminal |
6.35*0.8, 4.8*0.5. |
|
Available Calibration Ranges |
40℃ up to 180℃,tolerance ±5℃(insulation material PPS) |
|
Available Calibration Ranges |
40℃ up t o 220℃,tolerance ±5℃(insulation material 95 ceramics ) |
|
Standard Differential |
up to 40° C below the min. switching temperature limit lowest limit 30° C. Other values on request |
|
Pull strength |
≥80N, no slip off |
|
Dielectric Strength Terminal to Cap |
2000 V eff, 50 HZ |
|
Contact resistance |
≤100 mW |
|
Min. Rate of Temp. Rise |
0,5° C /min |
|
Ambient Temperature Limits |
0° up to 200° |
Competitive Advantage:
| Compliant with the RoHS Directive |
| With TUV and CCC safety certification marks |
|
Tracking Resistance of Base Material PTI ≥ 250 V |
