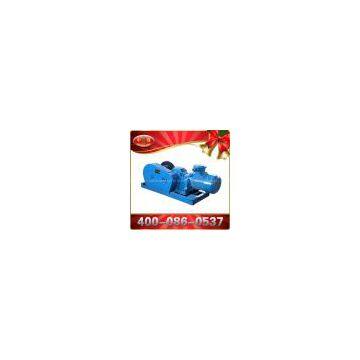

Help CenterJH-5 Drawing Winch
Related Products
2-high quality,low price
3-explosion-proof electric device
4-mining usage

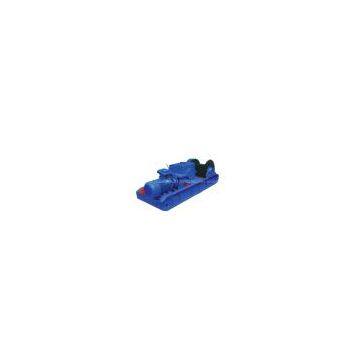

JH Drawing Winch mainly suitable back-cover under the mine or tow heavy article horizontally.Both winch electrical machine and electronic equipment are having acoustic explode performance.
Base on analysis of the structure and trait of the existing prop_drawing winches, this paper designs a new type prop_drawing winch using in mine and architecture.
Leading products are scheduling winch products, winch-back series of products, transport products winch, winch-car series, scraper conveyor, rake Doo ROCK LOADER series
|
model |
JH-5 |
JH-8 |
JH-14 |
JH-20 |
JH-30 |
|
Haul Cap.(KN) |
50 |
80 |
140 |
200 |
300 |
|
rope speed (m/s) |
0.17 |
0.09 |
0.094 |
0.1 |
0.13 |
|
rope dia. (mm) |
16 |
17 |
22 |
26 |
31 |
|
rope no. (m) |
80 |
100 |
130 |
170 |
220 |
|
motor power (kw) |
7.5 |
11 |
18.5 |
22 |
45 |
|
overall size (mm) |
1450×512×515 |
1600×530×670 |
2050×680×915 |
2200×968×864 |
3300×1075×1034 |
|
weight (kg) |
630 |
630 |
1350 |
2500 |
4460 |
