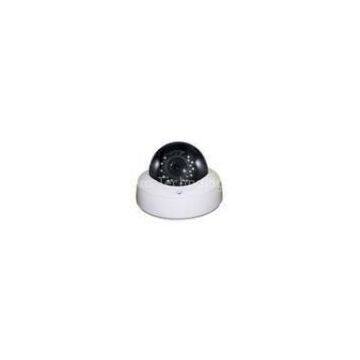

HD-SDI High Control One Push CVBS 50dB 0.02 lux 2 Megapixel HD CCTV Dual video dome camera
2 Megapixel HD CCTV video dome camera
Video Output 1920x1080 50/60fps
Dual video output: Mega-pixel HD-SDI (BNC) and CVBS
|
Model |
JY-HDC-004D |
|
Image Sensor |
1/3\" 2 Megapixel CMOS sensor |
|
Min. Illumination |
0.02 lux/F=1.2(AGC ON) |
|
S/N Ratio |
>50dB(AGC OFF) |
|
HD Video Output Interface |
HD-SDI |
|
HD Output Resolution |
1920x1080/2 Megapixel /1080p |
|
HD Video Output |
1080p 50/60fps |
|
HD Output Connector |
BNC-F |
|
Analog Output |
CVBS |
|
Electronic Shutter |
1/60(1/50)~1/8000 |
|
Lens |
2.8~12mm 2 Megapixel auto iris lens |
|
Day/Night |
Dual filter switching(IR-CUT) |
|
Back Light Compensation |
ON/OFF |
|
Auto Gain Control |
High/Medium/Low/Off |
|
Wide Dynamic Range |
Advanced WDR performance can reach 120bD |
|
Digital Noise Reduction |
3D digital noise reduction |
|
Sense Up |
Supports,X128 |
|
White Balance |
Auto/One Push/Manual /Indoor/Outdoor |
|
Gamma Correction |
0.45,(0.05~1.00 adjustable) |
|
Aperture Control |
Auto,-2.0EV~2.0EV |
|
On Screen Display |
Supports(Controlled by 5 buttons on the rear panel) |
|
Day/Night |
Supports (Auto IR Filter) |
|
Motion Detection |
8 zones,sensitivity can be set |
|
Digital Zoom |
Supports(10Χ,255 levels) |
|
Privacy Masking |
Supports, 8 zones can be set |
|
Mirror |
Supports(Vertical/Horizontal) |
|
Input Power Supply |
12VDC/24VAC |
|
Power Dissipation |
24VAC:Max. 6W 12VDC:Max. 6W |
|
Working Environment |
0°C~45°C;32°F~113°F(Humidity:20%~80%) |
